The internal combustion engine; a text-book for the use of students and engineers (1915)
Wimperis, Harry Egerton, 1876- · New York, D. Van Nostrand company · leaf 264

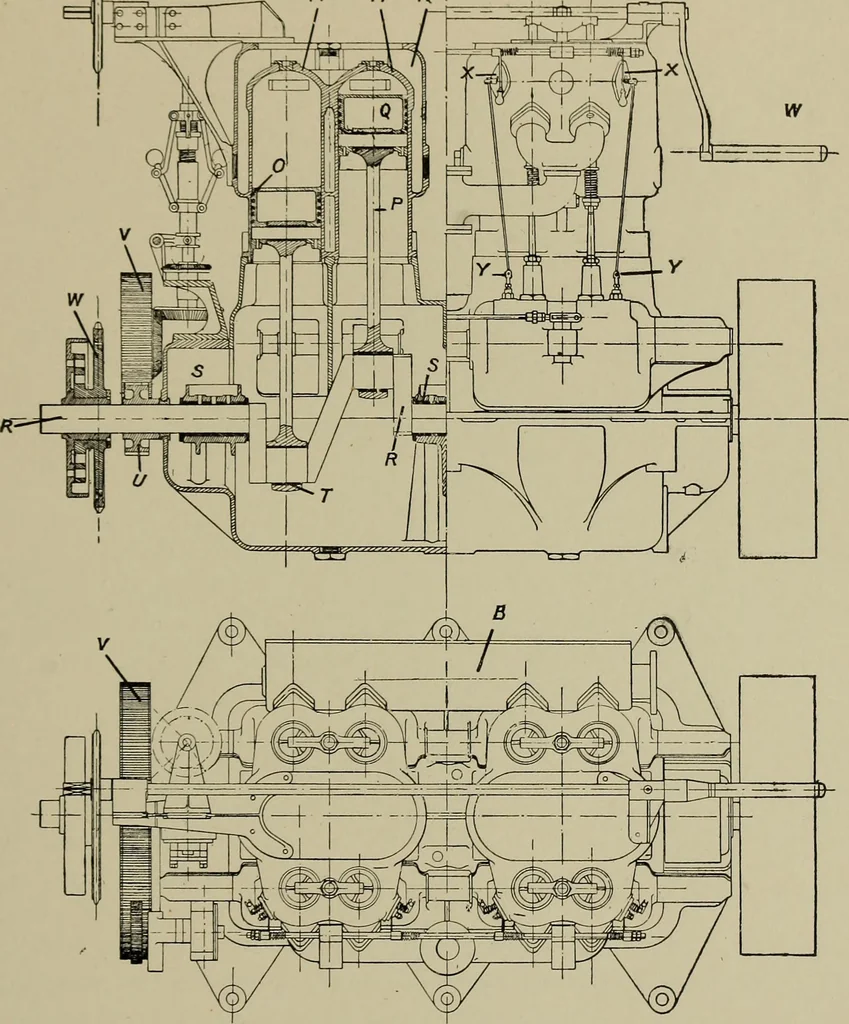

cap andbottom half brasses are left slightly narrower than thetop half. The pinion U on the crankshaft drives two fibrewheels V connected to the half-speed shafts. The free-wheel Fig. 71.—General Arrangement of Thorny croft 6* XMarine Petrol or Paraffin Engine—End view. chap, viii] OIL AND PETROL… … Fig. 72.—General Arrangement of Thornycroft 6 8 Marine Petrol or Paraffin Engine—Side view. YY. Advance sparking gear is worked by the lever Z, andhalf compression for starting by the lever A. The exhaustcollecting-branch is water-cooled. 242 THE INTERNAL COMBUSTION ENGINE [chap, viii 149. The…
Internal combustion engines
