Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 316

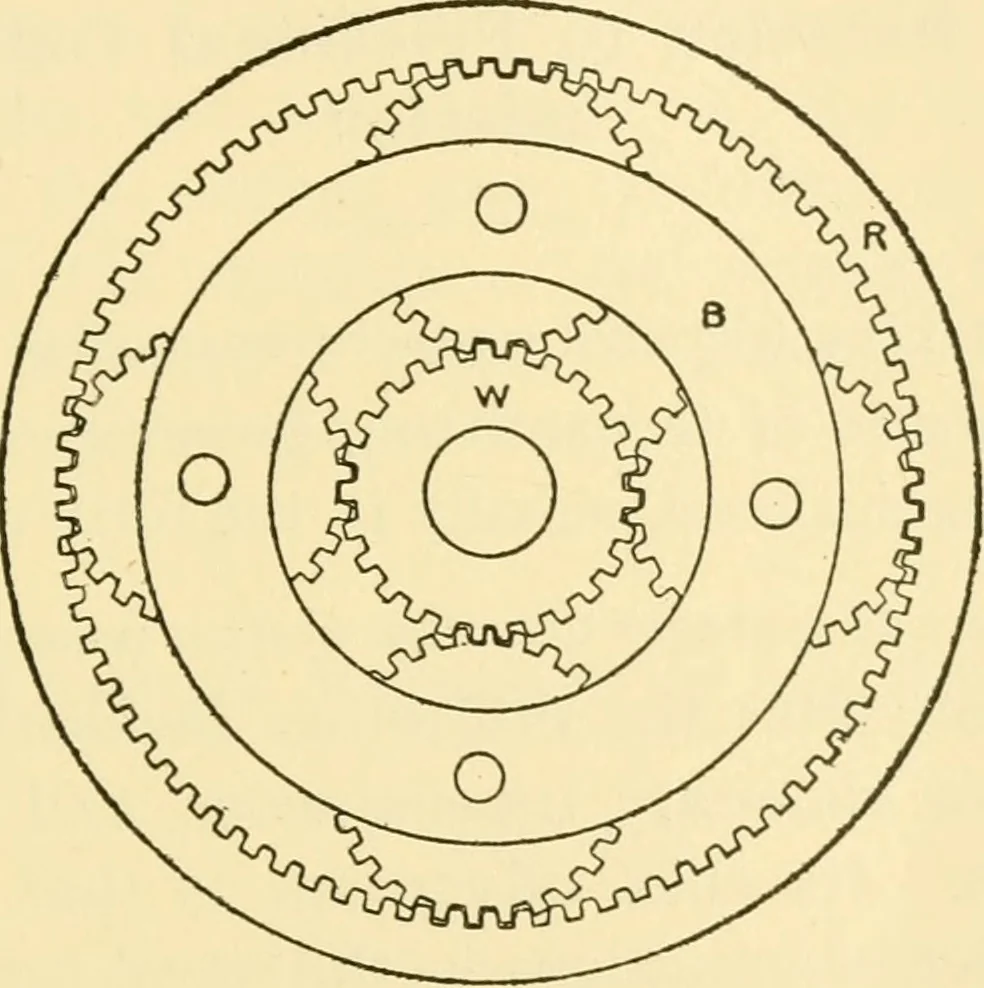

the neutral position, and the wheels consequently out of gear. Ques. What is the object of the press button on the transmissionlever? Ans. Simply a safety device to prevent the lever being accidentally thrown into reverse position. TRANSMISSIONS 289 Answers Relating to ^^Planetary Transmissions… … Fig. 177.—Diagram of planetary transmission. In operation, the band Bwhich carries the four small planet wheels and which is attached to tlie propellershaft is made to revolve slower than the engine shaft by the action of the planetwheels. These travel around the circumference of the central wheel,…
Automobiles
Internet Archive · Northeastern University Library · Public Domain Mark 1.0. Free to use for anything.
