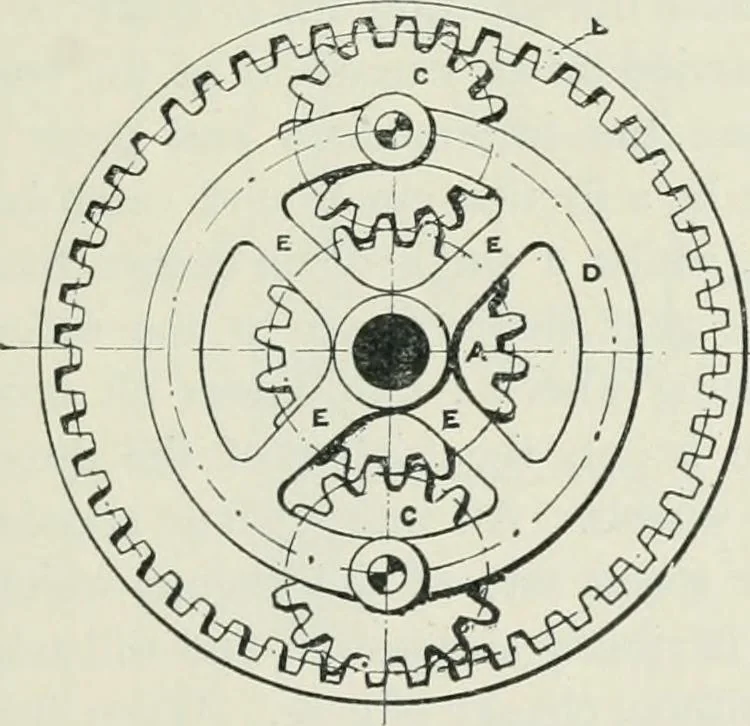

net gear wheels, c, c, justlarge enough to fill the space between them and cut with teethto correspond with those on the two gear wheels, are placed,these pinions being mounted on pins carried by a ring or discD, which may or may not be supported by arms, e, e, e, e,from a centre as shown. We thus… … Fig. 16 pinions, revolved, the outer wheel b is caused to revolve at afaster rate than the ring, whilst if the outer wheel be held theinner wheel will also be driven at a faster speed, but in differentratios. On the other hand, if cither the outer or inner wheelbe held and the other driven, the…
