Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 341

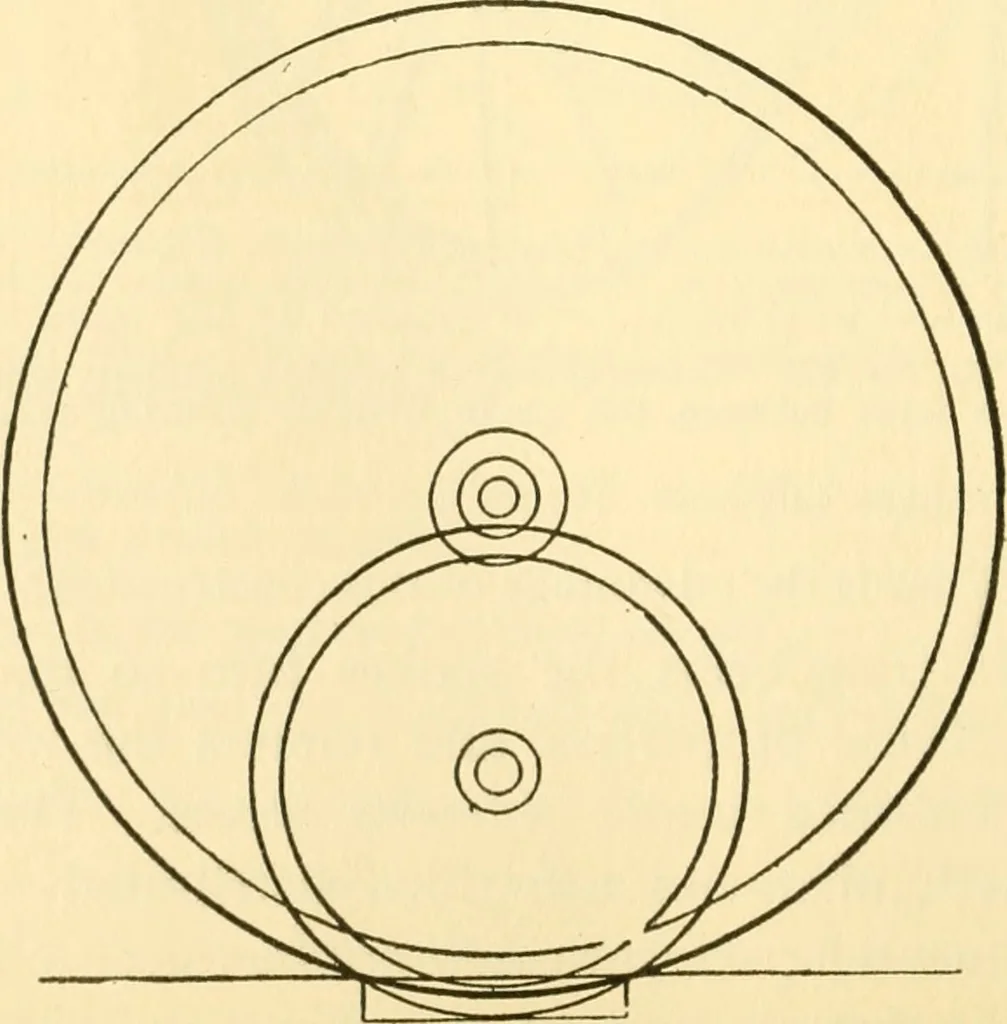

Figs. 204 and 205.—A typical wooden artillery or wedge wheel showingmanner of setting the spokes and the construction of the hub. … Fig. 206.—Diagram showing the relative drop intosmall carriage wheel and on.- Iwkc- its diameter. road rut between a THE RUNNING GEAR 31,) Ques. How is the dish usually balanced? Ans. By slightly inclining the axle spindle from itscenter line, as shown in fig. 207, thus bringing the lowestspoke to…
Automobiles
