Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 371

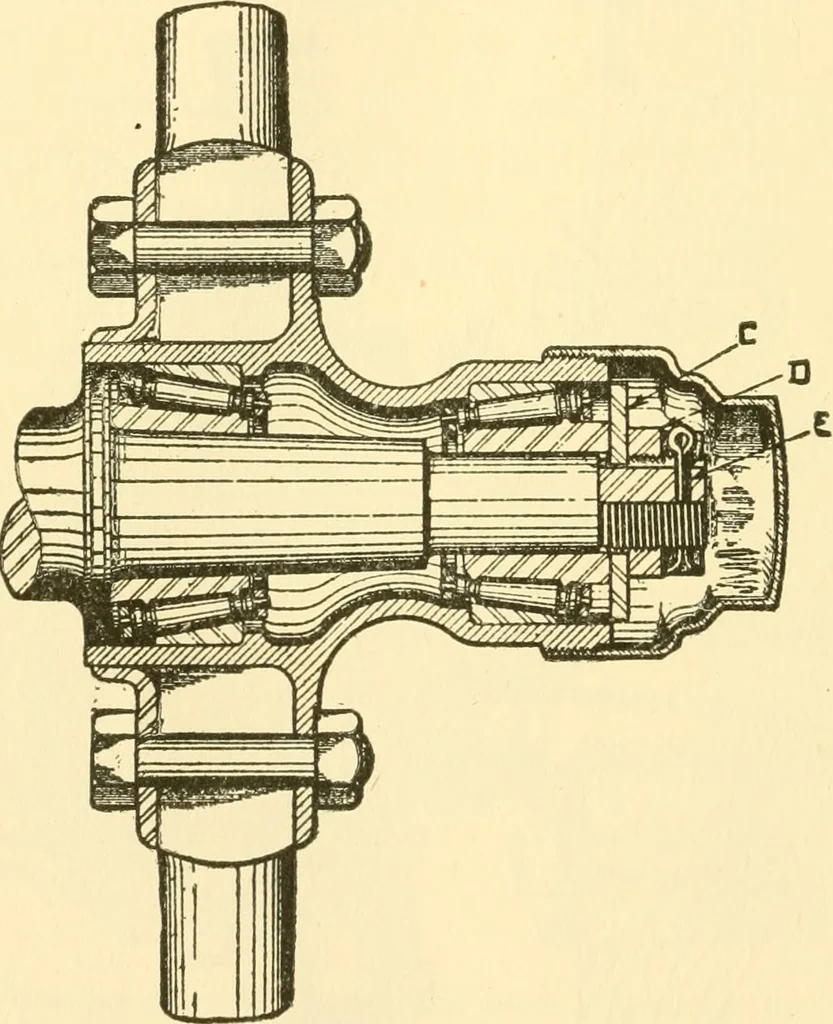

ed through the wheels to the gear, but will be absorbed in theaxles. Ques. Describe the radial type of ball bearing.Ans. In this form, as shown in figs. 249 and 250, theballs are inserted between two grooved rings. 344 Al/DELS ANSWERS Ques. What is the distinction between the silent and the… … Fig. 252.—Roller bearings as mounted on front hub of the Franklin car.They should be adjusted so that the wheels turn freely, but without side play.After adjusting, the cotter pin is inserted in the hole. The washer, C, goeson before the nut, D, to keep the latter from turning; it accomplishes…
Automobiles
