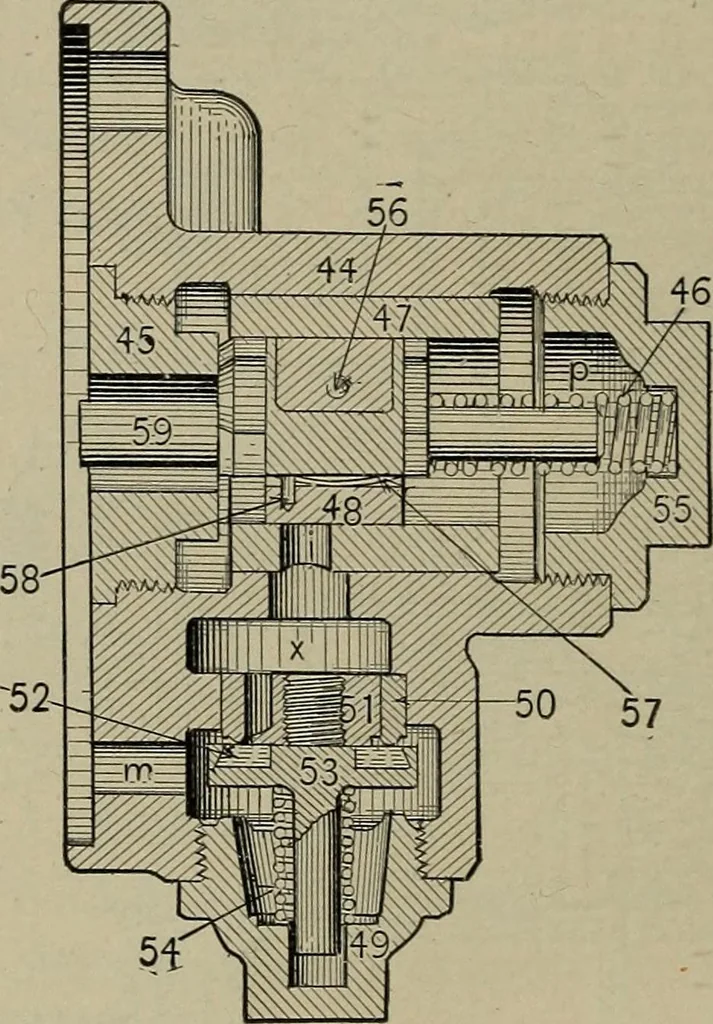

^\\\\\\\\\\s\\sm\\\\\\\^^^^^ P43 Fig. 65.—Release Position When Locomotive Brake is Released byIndependent Brake Valve, After an Automatic Application. 220 THE DISTRIBUTING VALVE the pressure chamber or brake pipe, or causing any move-ment of the equalizing portion. 606. To release the locomotive… … Fig. 66.—Quick Action Cylinder Cap for No. 6 Distributing Valve. valve, it is necessary to hold the independent brake valvein full release position. This is occasioned by the main-taining feature which supplies air from the main reservoir QUICK ACTION CYLINDER CAP 221 to the application cylinder,…
