Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 420

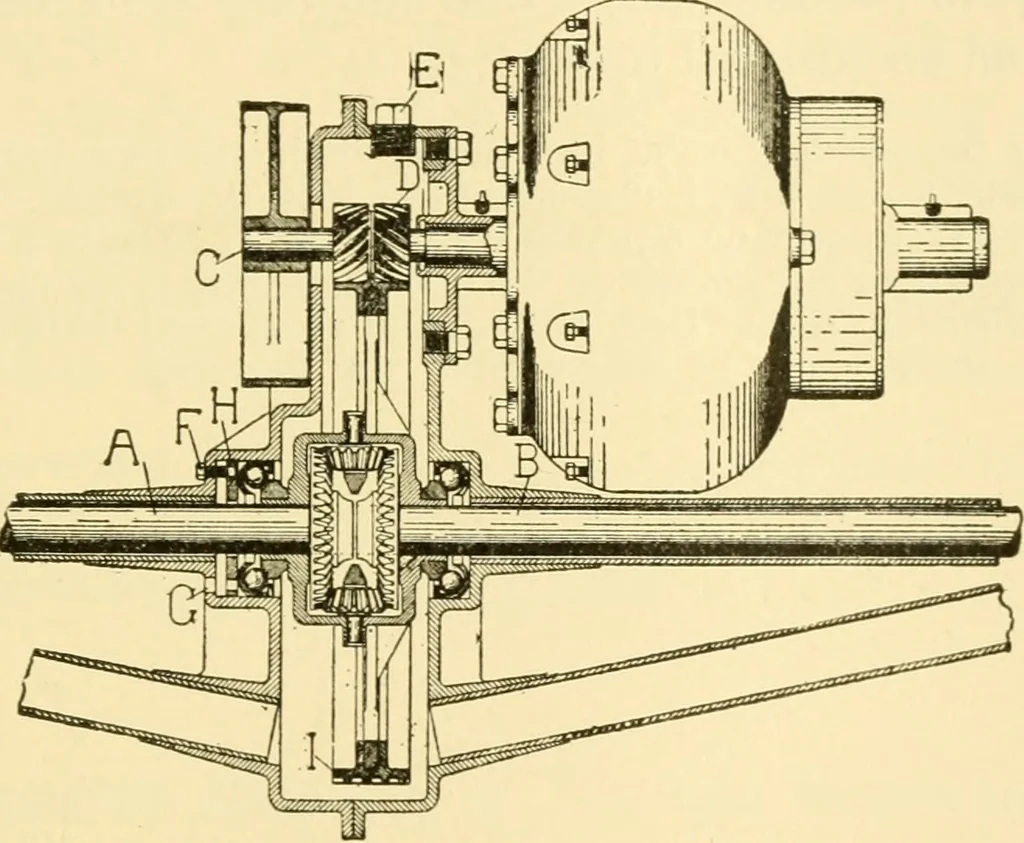

e coil orwinding of the armature; E, the outside circuit to which the current is supplied. DYNAMOS AND MOTORS 393 Ques. What is the effect of a short circuited magnet coil of aseries motor? Ans. The motor will call for a large current but will donothing with it. The magnet coils, therefore, should… … Fig. 296.—Diagram of a single motor attached to rear axle throughherringbone single reducing gears. A, is the left hand section of the dividedrear axle; R, the right hand section of the rear axle; C, the brake drum; D, thespiral pinion on the motor shaft driving the worm gear, I, on the…
Automobiles
