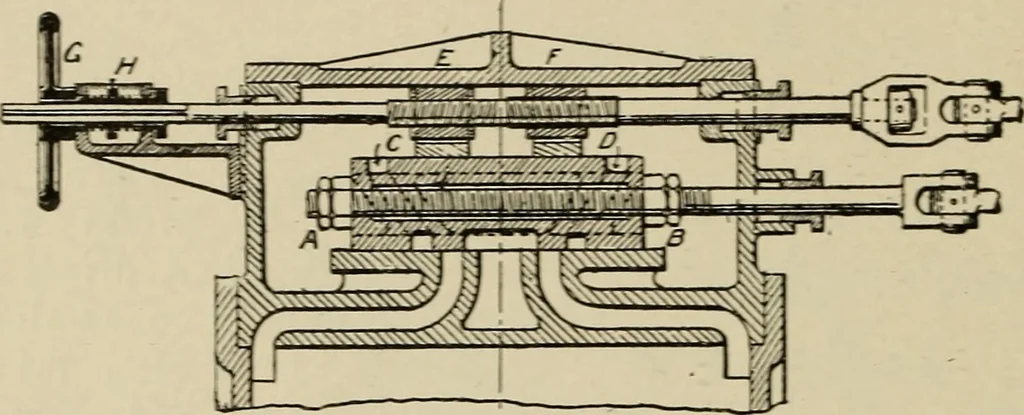

239. BALANCED SLIDE VALVE.—A ring in a recess of the valve rides againstthe steam chest cover, held by a spring. 7* STEAM POWER. r ^ ^^^^^^^:: n 240. DOUBL&PORTED SLIDEVALVE and adjustment by doublenuts in the back of the valve. … 241. MEYER CUT-OFF VALVE.—C, D, Slide valve \\-ithperforated ports. The supplementan- or cut-off valves are adjustedto the required distances, to meet the required cut-off, by a right andleft screw, which has an index H, and wheel G, for turning the screwfor cut-off adjustment on the outside of the…
