Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 453

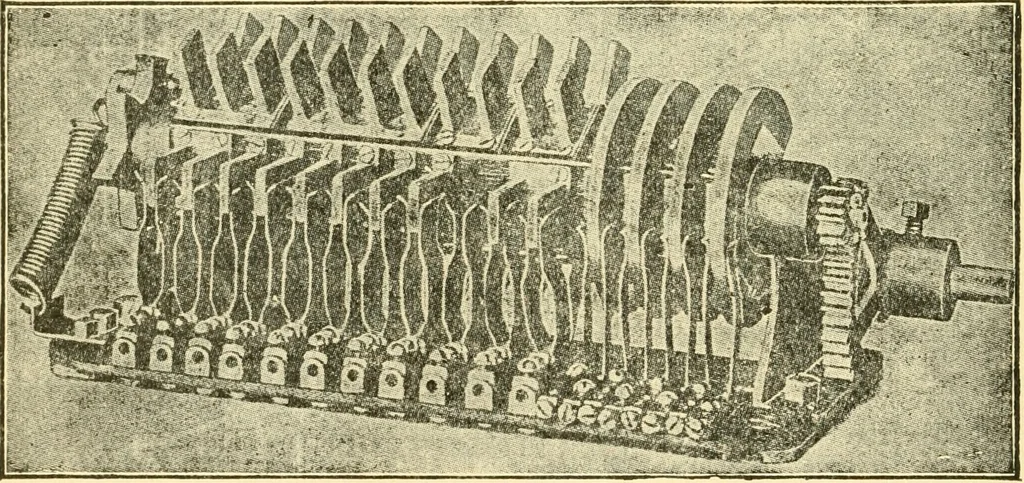

are secured to the controller cylinder by screw connections, being arranged singly, or several of them together on one plate. In the case of a pair of blades, shown in contact with thespring at either extremity of the controller cylinder, it is evidentthat there is an electrical contact, through… … Fig. 327.—A typical electrical vehicle controller, or circuit changingswitch. The circuit terminals of the battery and motors are shown at thejack springs, which are arranged to be engaged by the fins on the peripheryof the controller cylinder. The connections within the controller, between…
Automobiles
