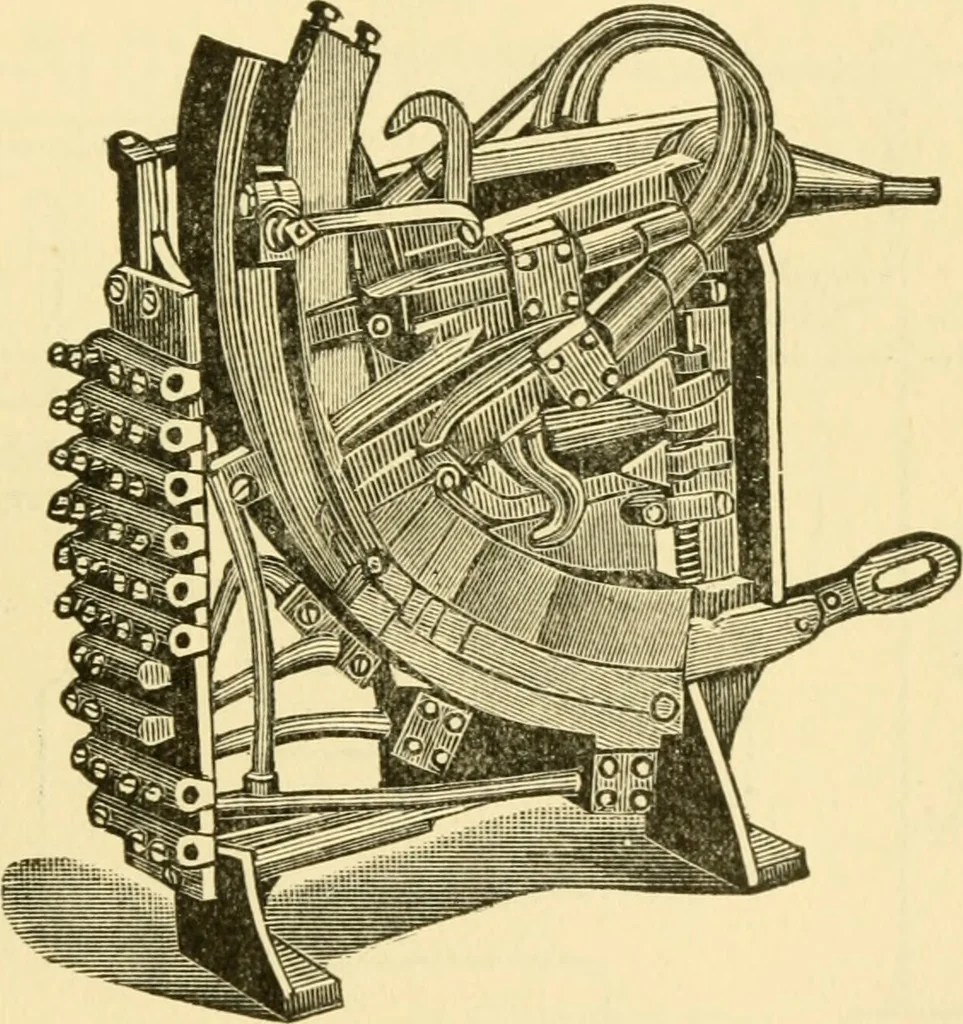

, the desired electricalconnections being made by conducting surfaces suitably con-nected on the cyhnder circumference, and cut-outs beingsimilarly accomplished by insulating surfaces, bearingagainst the spring contacts at the desired points. This type of controller is one of the most usual forms… … Fig. 328.—Controller of the Rauch and Lang electric vehicles. It is ofthe flat radial type. Two movable copper leaf contacts of ample size maki-all commutations necessary to obtain the various speeds. Five speeds forwardand reverse are provided. accomplished, as shown on the last circuit diagram.…
