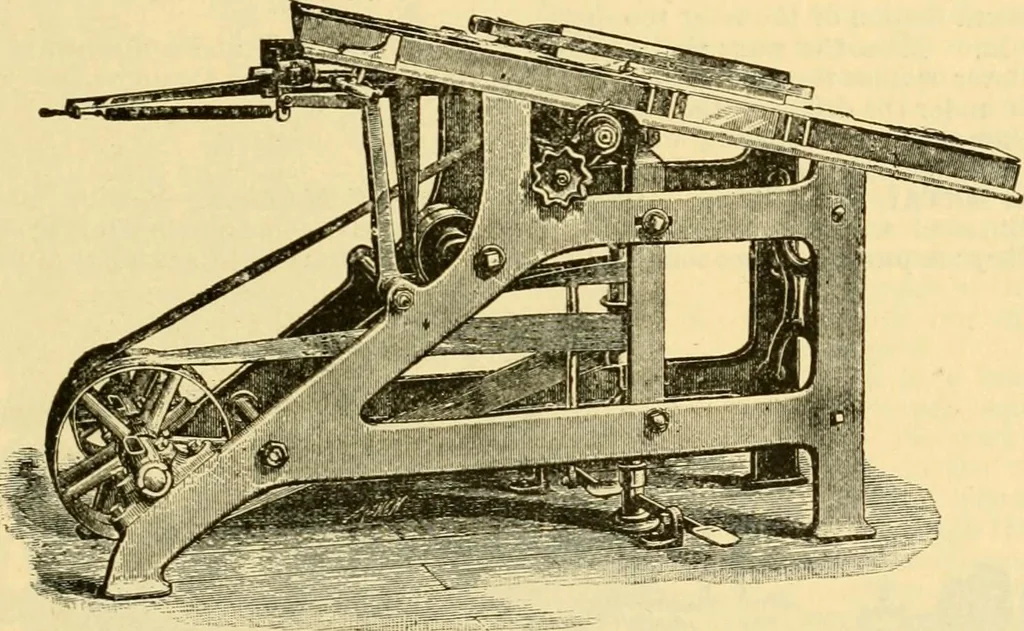

sses a central point, thus retaining the clamp inposition until released. The fulcrum of the treadle which actuates this toggle and clamps theframes is adjustable so as to make more or less movement on the clamps, as may be required.Each receiving rail has long dogs for doors, and short ones for… … Fig. 1 —Sash, boring and plowing. table, bearing a mandrel npon which there are two sets of saws, one at each end. There areattached to the main table two glued up wooden tables, borne by brackets, and having A^er-tical adjustment, as also sliding motion to and from the saws. The rail is first…
