Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 77

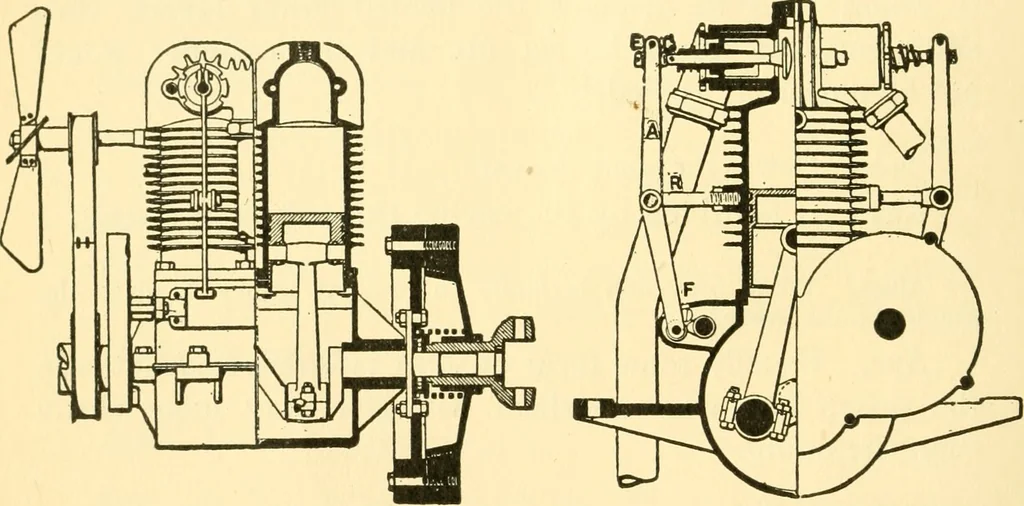

ns. The heated water frotii the engine enters at thfttop and circulates to the bottom, flowing through the smallspaces between the tubes. A strong current of air induced 50 A If DELS ANSWERS by a fan, and also by the motion of the car, passes throughthe tubes and absorbs heat from the water. Ques.… … Fig. 17.—The Cameron air cooled engine. The fan shown at the leftcools the cylinders by inducing a current of air, which passes over the largesurface presented by the numerous ribs. The valves are located above thecylinder bore in opposite chambers and work horizontally. Each valve isoperated by a…
Automobiles
Internet Archive · Northeastern University Library · Public Domain Mark 1.0. Free to use for anything.
