Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 98

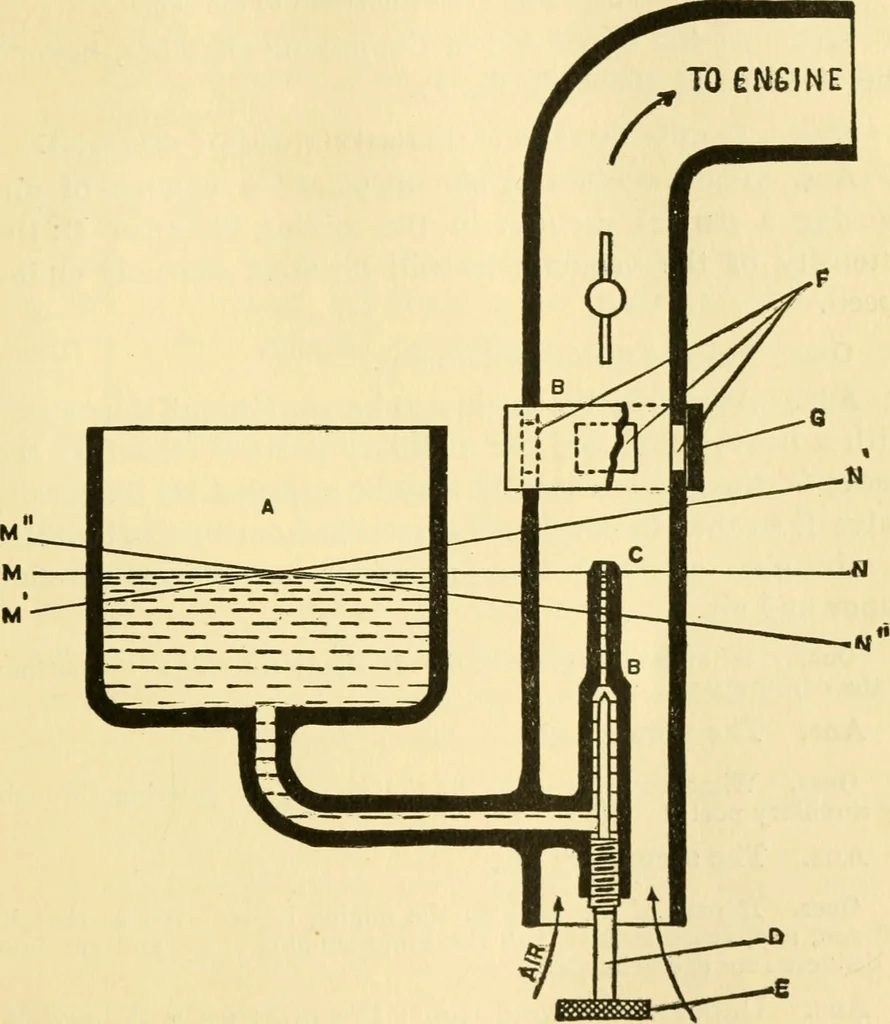

C, madeadjustable by the needle valve D. The lower end of themixing chamber B is open to the atmosphere, while theupper end is provided with auxiliary air ports F, having acollar or sleeve G with which to adjust the opening of theports to the atmosphere. Ques. In explaining the action of this… … Fig. 27.—A rudimentary, or simple form of spray carburetter illustratingthe principles of operation employed in the modern device. A, is the receivingchamber; B. the mixing chamber. A connecting passage conveys fuel to thespray nozzle C, controlled by the needle valve D, by turning the thumb…
Automobiles
