Thermodynamics of the steam-engine and other heat-engines (1889)
Peabody, Cecil Hobart, 1855-1934 · New York, Wiley & Sons · leaf 197

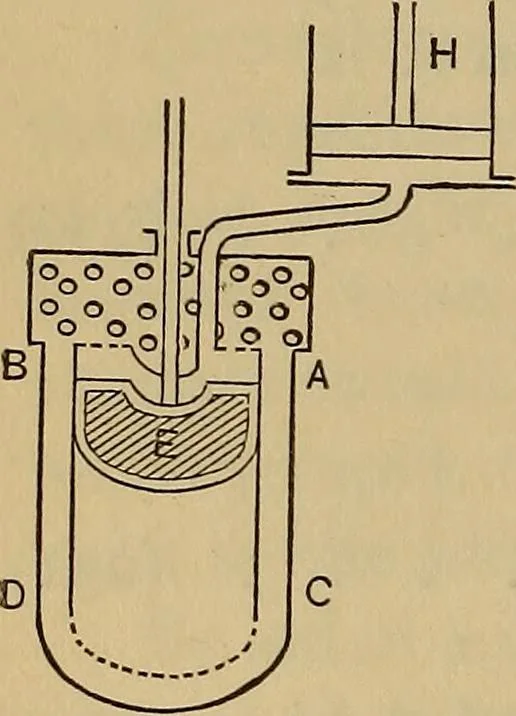

of the outer cylin-der is exposed to the fire of the furnace, andthat of the inner is pierced with holes through which the airstreams when displaced by the plunger. At the upper endthere is a coil of pipe through which cold water flows. Theworking cylinder H has free communication with the upperend… … Fig. 39. p A y X \ W Xn^ ^^ z D Y C 0 V HOT-AIR ENGINES. 173 there are two displacer cylinders, one for each end of the work-ing cylinder. If we neglect the action of the air in the clearance of thecylinder //and the communicating pipe, we have the followingideal cycle. Suppose the working piston…
