Augsburg, De Resco Leo, b. 1859 · Boston, New York, Educational Pub. Co · leaf 114

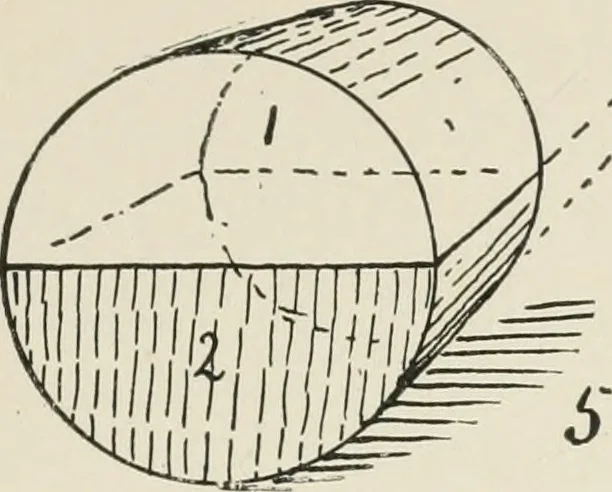

left of the eye. 18. Draw part 1 below the eye. 19. Draw part 2 below the eye. 20. Draw part 2 belov/ and at the right of the eye. 21. Draw part 3 and remove the curved face. 22. Draw part 4 and remove the top face. 23. Slide part 3 to the right and away one-fourth its length. 24. Slide part 3… … parts as indicated in the following exercises : When the draioingis based on the honzonlcd receding cijlinder, the center of vision maybe used. 25. Draw part 1 below and at the right of the eye. 26. Draw part 1 below and at the left of the eye. Removethe front face. 27. Draw part 1 l)elow the eye.…
Drawing
