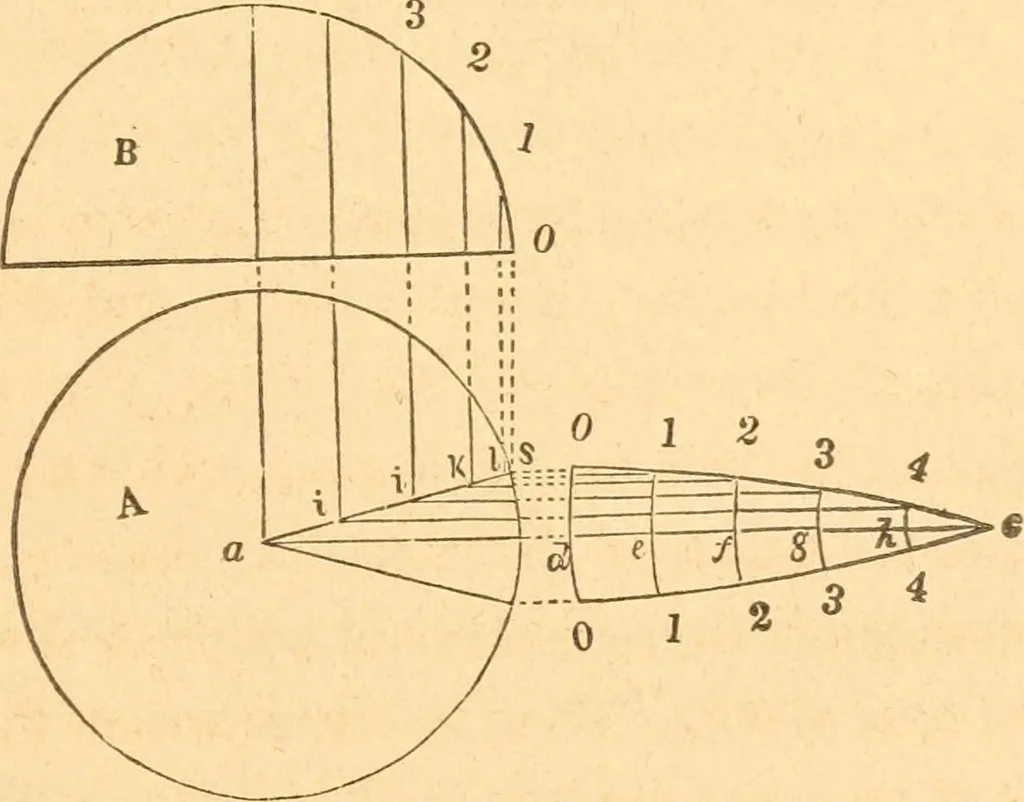

Fig. 2-1 of one of the ribs. Then take e f for the transverse axis andtwice the rise, o g, of the dome for the conjugate, and describe,(according to Art. 115, 116, &c.,) the semi-ellipse, e g f, whichwill be the curve required for the rib, e g f. The other ribs arefound in the same manner. b 4 … Fig. 222. 310.— To find the shape of the covering for a sphericaldome. Let A, (Fig. 222,) be the plan and B the section of agiven dome. From a, draw a c, at right angles to a b ; find thestretch-out, {Art, 92,) of o b, and make d c equal to it; divide thearc, 0 6, and the line, d c, each into a…
