Augsburg, De Resco Leo, b. 1859 · Boston, New York, Educational Pub. Co · leaf 147

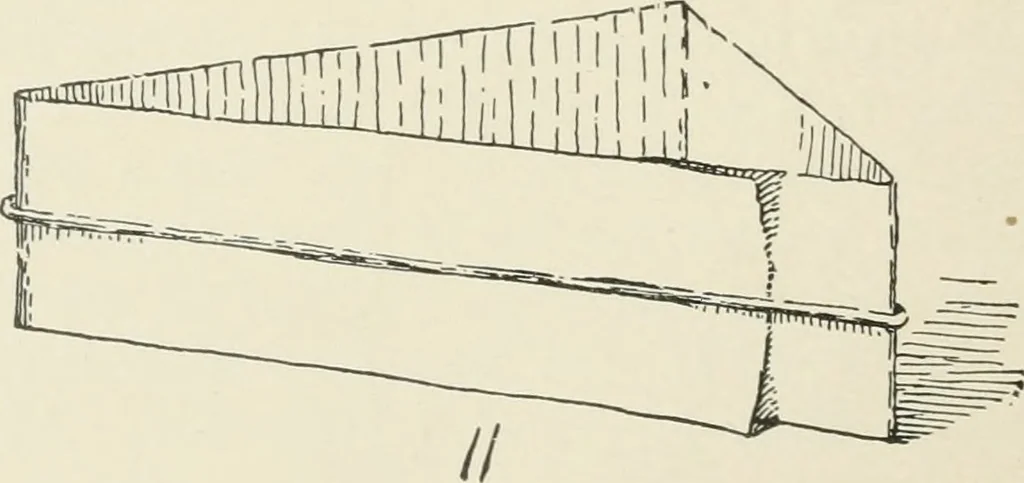

rism is drawn the same as the ])()X. (See ExactDruwing, Chapter VI.) This is done in general, as follows : 1. Take the nearest vertical line. 2. Find the remaining vertical lines. 3. Find the corners. 4. Finish. Stated more specifically, the process is as follows : 1. Place the object, say as in… … AUGSBURGS DRAWING. 145 DRILL EXERCISES. In the follovnng exercises do not use the pictures, but a realprism for a model. 1. Place the prism in the position of Fig. 1 and draw it. 2. Place the prism in the position of Fig. 4 and draw it. 3. Place the prism in the position of Fig. 5 and draw it. 4.…
Drawing
