Radford's architectural drawing : complete guide to work of architect's office, drawing to scale--tracing--detailing--designing --classic order of architecture. A complete and thorough course, clearly written and beautifully illustrated; suited alike to individual study and class instruction (1912)
Radford, William A., 1865- · Chicago, The Radford Architectural Company · leaf 99

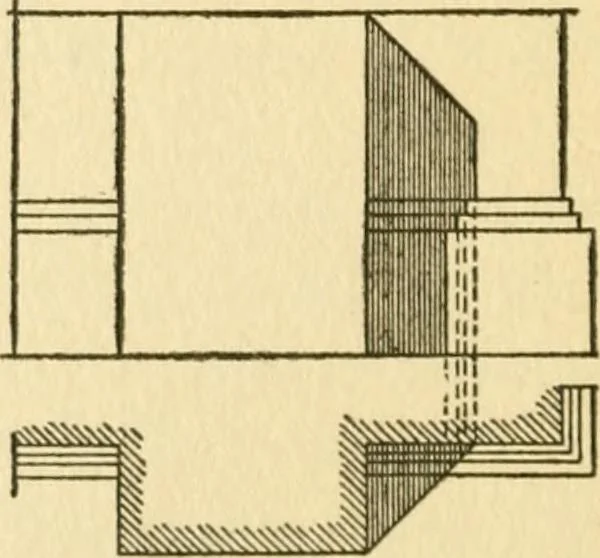

Fig. 36. Showing Shadow of a Line Perpendicular to Plane of Shadow. … Fig. 37. Showing Shadow of aLine Parallel to Plane ofShadow on a MouldedSurface. The shadow of a straight line inclined to theplane upon which the shadow falls, is a straight ARCHITECTUEAL DRAFTING• p/ane. of ShaeJowy 265
