Augsburg, De Resco Leo, b. 1859 · Boston, New York, Educational Pub. Co · leaf 53

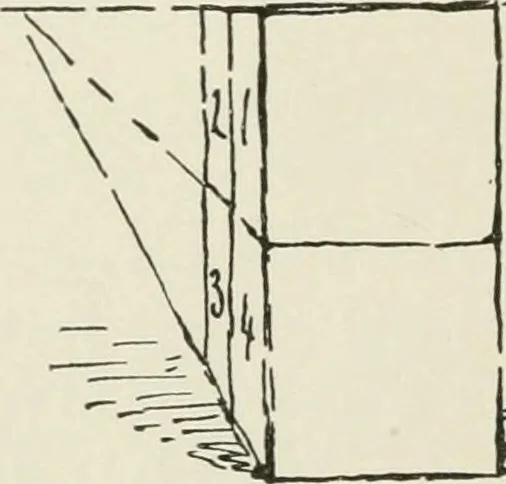

Drill Exercises Based on Fig. 9. 9. Remove block 1 and place it on 3. 10. Remove block 2 and place it on 4. 11. Remove blocks 2 and 4 and place them below and at theright of the eye. 12. Place block 1 behind 3, and 2 behind 1. 13. Remove block 1 one block to the right. 14. Remove block 1 one block… … ^rio Drill Exercises Based on Fig. 10. 16. Remove block 2 and place on 1, and block 3 and placeit under 4. 17. Remove block 1 and place it at the left of 3. 18. Remove block 1 one-half of a block to the rio;ht. AUGSBURGS DRAWING. 51 19. Remove block 2 one-half of a block to the left. 20. Remove…
Drawing
