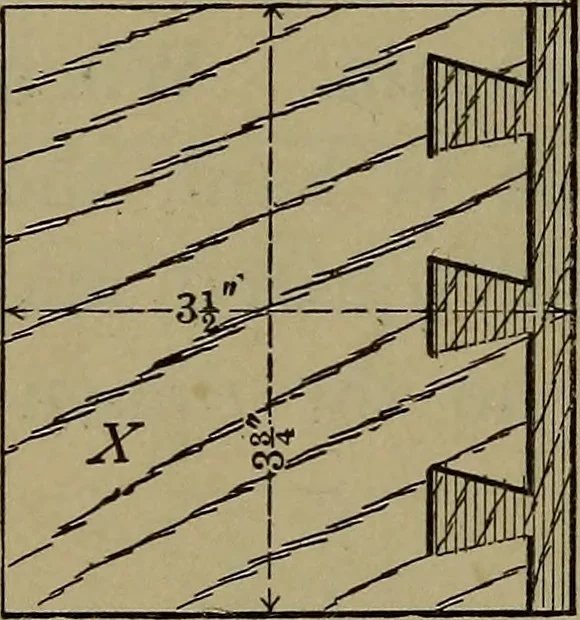

ELEVATION (FACE B.) … :Eig. SOS Scale,/ 8 — 1 1 I 4o 4 ELEVATION (FACE A.) I74* O^ ^J Fig. 202, scribe the line a^, ^(the thickness of X) from theworking-end, and continue itacross the working-edges. Set agauge at f, and from the work-ing-face A gauge the line cd onthe working-end, and extend it onthe edges until it…
