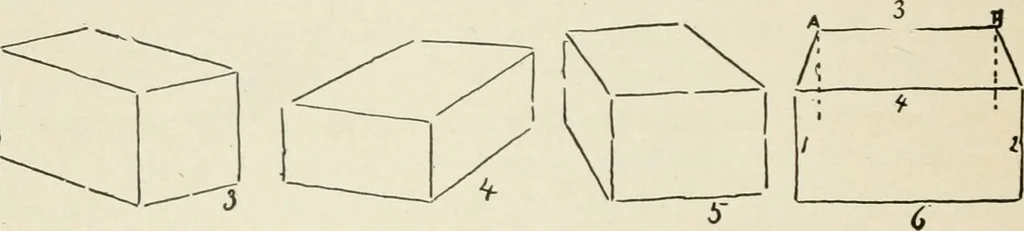

arallel with line 86 AUGSBURGS DRAWING. 4, and lines 7 and 8 parallel with line 5, in the same manner asin Chapter V. You can prove whether you have corner G in theright place by passing your pencil vertically through corner G andnoting where it crosses line 7 or 6, and then making a… … 8. Place a box in the position of Fig. 3 and draw it. 9. Place a box in the position of Fig. 4 and draw it. 10. Place a box in the position of Fig. 5 and draw it. 11. Place a box in the position of Fig. 6 and draw it. Note.—In this position lines 1 and 2 \y\\\ be the same length and lines 3, 4 and…
