Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 229

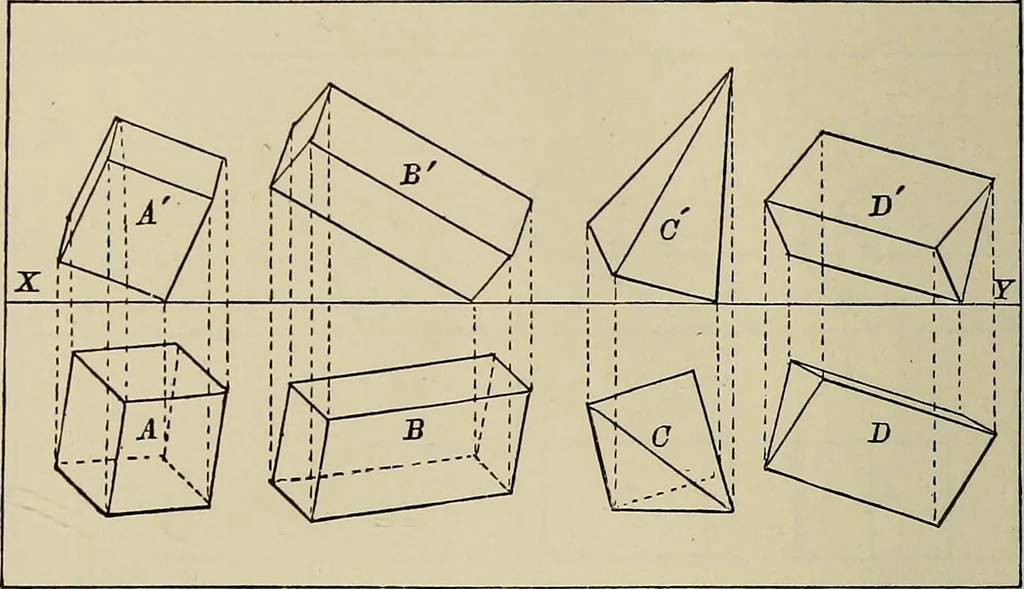

FiR. 8. Fig. 9.—Here they are shown with every line inclined toboth planes: instead of having one edge resting on the H.P., asin Fig. 8, they are each poised on a corner. To distinguish this 2o8 SOLID GEOMETRY chap, xvii position from the one illustrated in Fig. 8, we will call it corn- … Tig. 9. pound ohlique ; although Figs. 8 and 9 generally come under onehead, as objects inclined to both planes. CHAPTEE XVIII SIMPLE SOLIDS IN GIVEN POSITIONS TO SCALE Note.—Feet are indicated by one dash, and inches by twodashes: thus—3 6 represents 3 feet 6 inches. Peoblem 1. To project a…
Geometrical drawing
