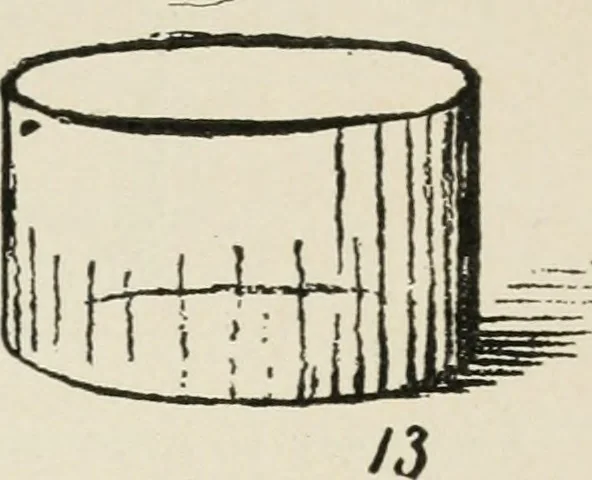

al cylinder, or cylinders, in any position, it isnecessary to draw both ends entire. It is often necessary to draw the whole in orderto represent the part correctly. 3. Draw a vertical cylinder with the toji on a level with theeye. 4. Draw a vertical cylinder above the eye. 5. Draw a vertical… … Problems 1-6 were drawn \7ith0ut regard to the exact propor-tion. The aim was simply to draw a ci/Under in a given position.Now we will learn to dra^ ?. cylinder in exact proportion, as itappears to the eye. The following is a simple and effective formula, not only fordrawing the cylinder, but for…
