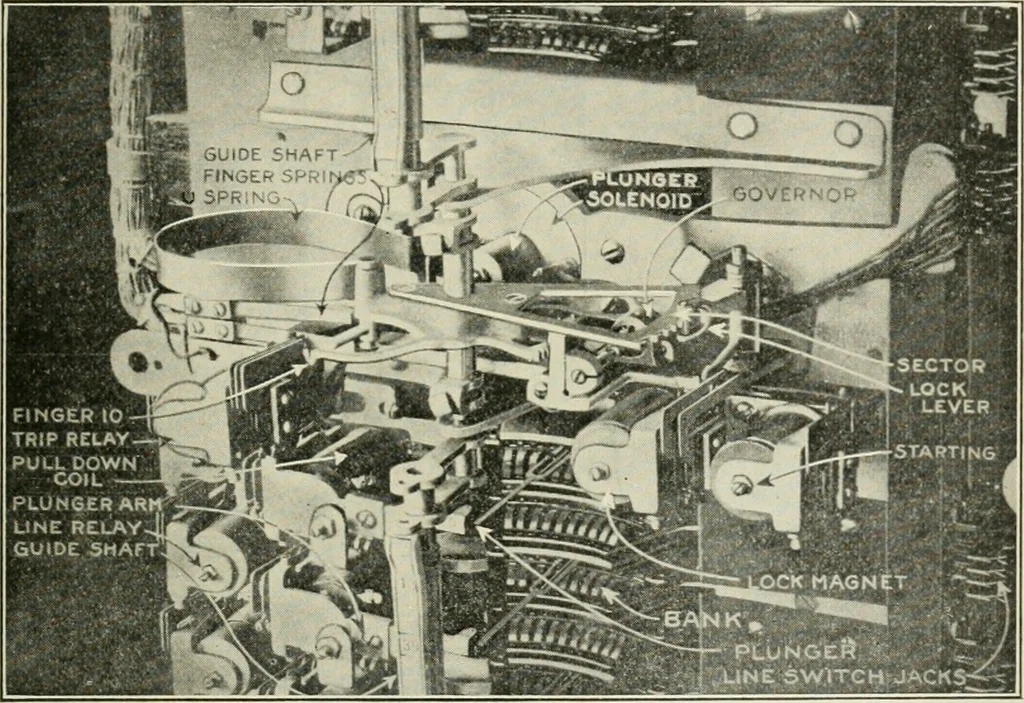

rs line at the connector bank so that noconnector can seize this line. The operation of the lineswitch circuit (Fig. 46) proceeds as follows:When a subscriber lifts his receiver from the switch hook the circuit isclosed from earth at the lineswitch through spring (a) to the positiveside of line to… … Fig. 45.—Master switch mounted on shelf of Keith lineswitch unit. As soon as this circuit is established the line relay attracts its armature,closing the circuit from ground through the pull-down coil, P.D.C.,to open-main battery bus bar, which is always connected to the nega-tive pole of battery…
