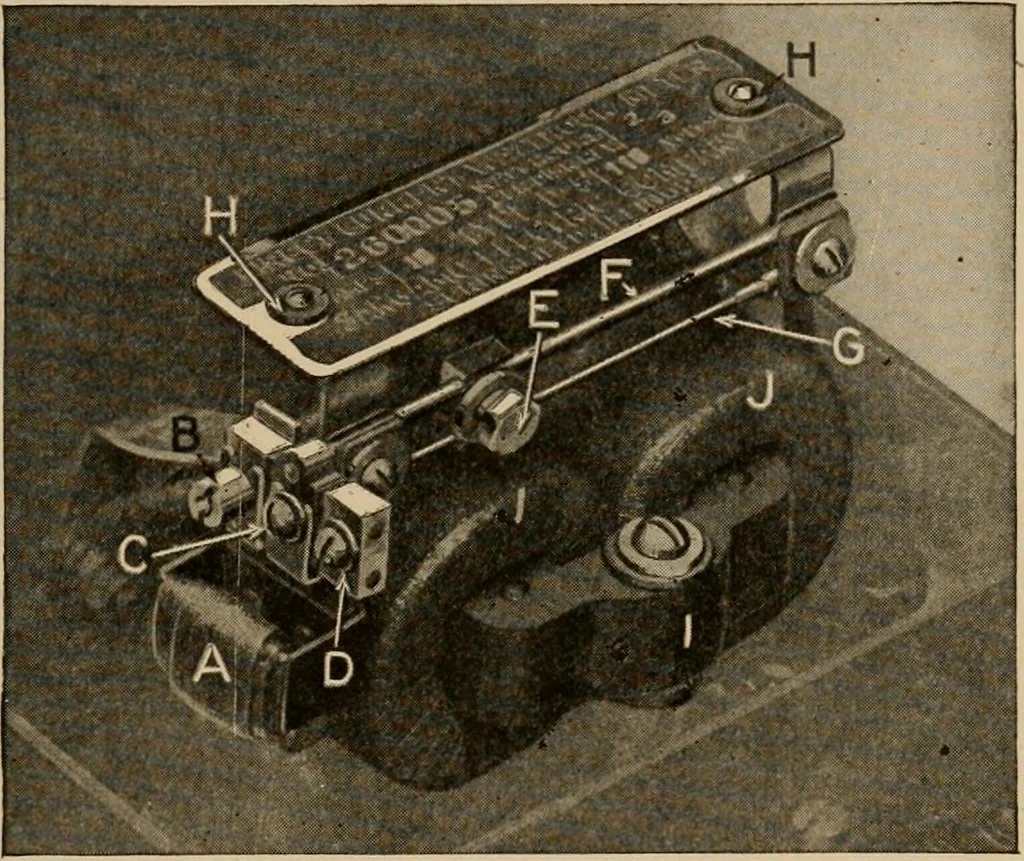

wo strips of dissimilar metal terminat-ing in slotted ends held by screws B and C. Around these metalstrips are a number of turns of fine wire which are connected in serieswith the potential circuit of the meter. The heating effect of thepotential current in passing through the thermocouple winding… … Fig. 96. Thermocouple and Light-Load Adjustment of San- gamo Direct-Current Watt-Hour Meter Courtesy of Sangamo Electric Company of flow and a portion of it will pass along the copper wire F and backthrough the resistance wire G. These two circuits are in parallel,so the current will divide itself…
