Edwards, John Isaac, Wells, Reginald Ellis, author · leaf 30

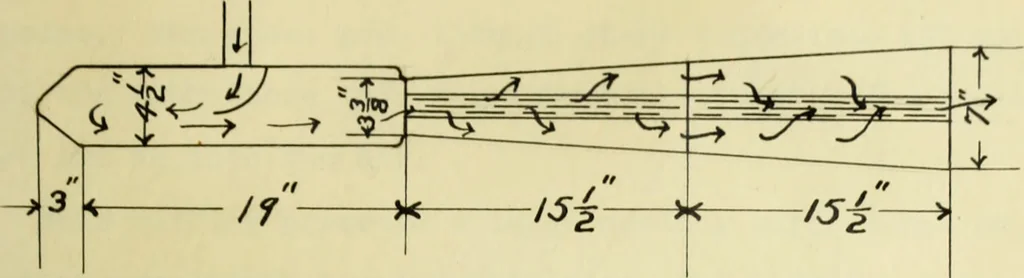

10. The Oldrimobilo MuffleBPG. … Oldsmobiie Tourinq-Car Muff/er b» ^i ^ %f-— -f— ■*— > 7 Ofdsmobtfe Bupabout Hufffer The muffler used on the Oldsiaobile mnaoout is shovm inthe diagram above. Gas enters tlie central pipe at one end andflo^s through to the other end as indicated by the arrows.From there it pasnes through a cone…
Automobiles · Theses
