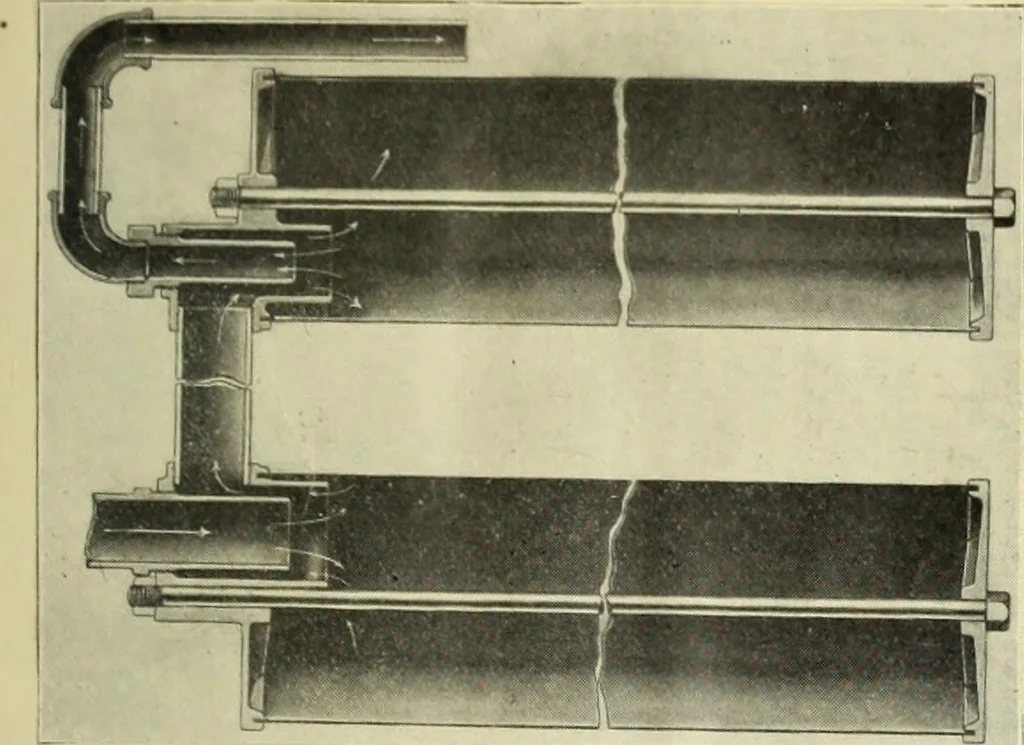

the first muffler shell is an annular space surroundingthe exhaust pipe entrance; this animlar space is piped a* right- angles to the front end of the other muffler shell, ?ihich hasthe same arrangement as in the first shell. The exit is anannular space surrounding the second exhaust pipe, and… … oir ia Gimilnrly retaTded. The imiftler nhellB are not piercedand nothing pass»>B through them. The open exit ic of leof-; areathan the motor exhaust pipe,and the second exit area is still less. On the Cadillac single cylinder car only one expanr.ionchamoer like the first chamber of the…
