Edwards, John Isaac, Wells, Reginald Ellis, author · leaf 46

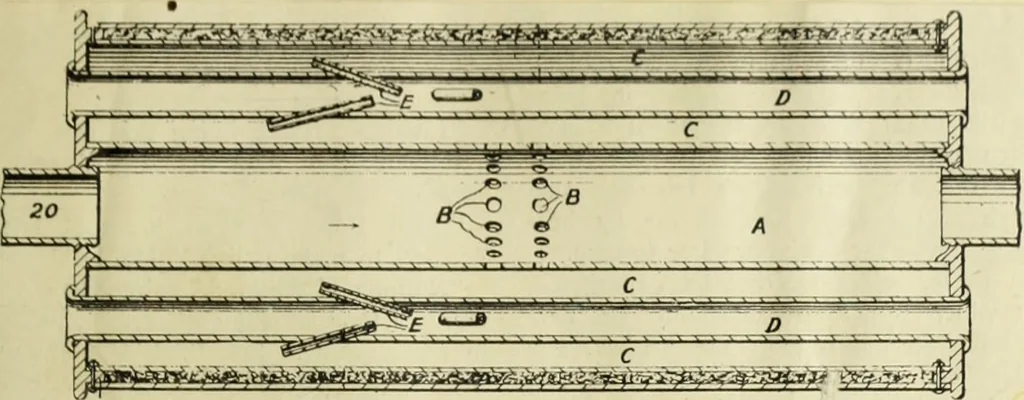

ighing20 pounds. Thesheet steel shell is double with a thicknes^^ of asbestos between. The entire interiorof the muffler is open and unobstructed; the exhaust enters nearthe top of one end and leaves t^irou. h two circles of perforations,8-3/I6 holes, leading into an elbow having a closed outer… … This muffler is designed with a view to reducing thevolume of the exliaust gases as laich as posniiole by coolingbefore discharging them. The raiffler is cylindrical in form andis placed lengthwise In tjie car, the left end of the cut f:eingthe front end of the muffler. The gases may enter at…
Automobiles · Theses
