Benjamin, Charles H[enry], 1856- [from old catalog] · Cleveland, C. H. Holmes · leaf 93

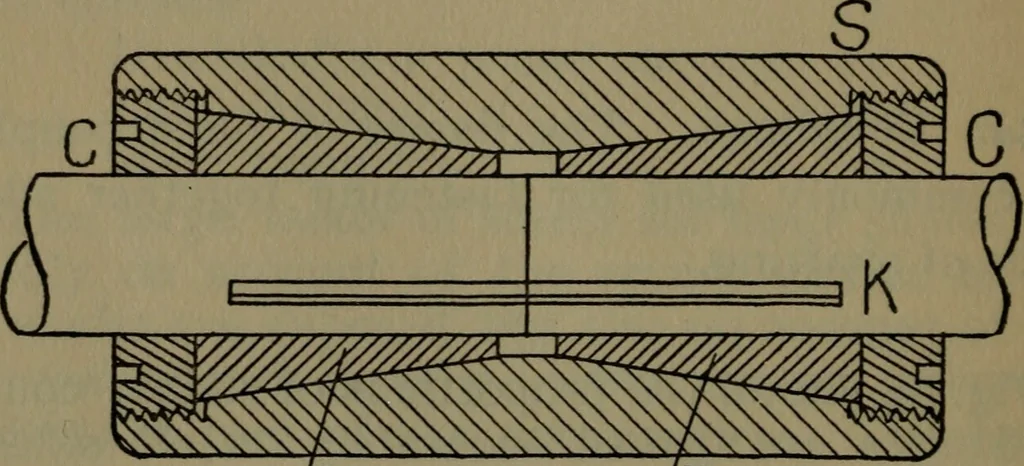

ther more complicated and expensive. 86 MACHINE DESIGN. In Fig. 35 is illustrated a neat and efifective coup-lino^ of this type. It consists of the sleeve S boredwith two tapers and two threaded ends as shown.The two conical, split bushings B B are prevented fromturning by the feather key K and are… … Fig. 35. Couplings similar to this have been in use in theJnion Steel Screw Works, Cleveland, Ohio, for manyyears and have given good satisfaction. In another form of sleeve coupling the sleeve issplit and clamped to the shaft by bolts passing throughthe two halves. 55. Coupling Bolts. The bolts…
Machine design
