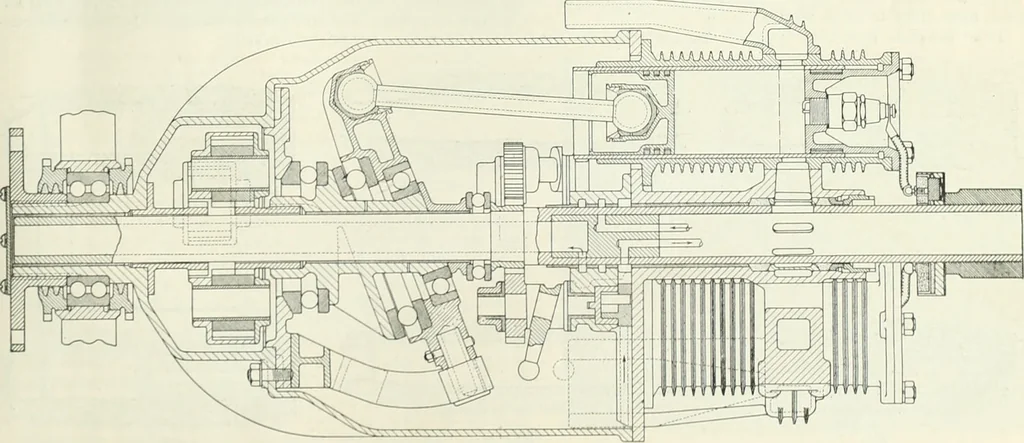

described a single sleevetype of valve is employed which has a combined rockingand reciprocating motion. Referring to the accompanying sectional view, the wholeengine is supported on a stationary hollow shaft, the for-ward end of which is held rigidly on a cross member ofthe frame. Combustible… … Ncdomn Mnjdcr rerolfhiy air-rimlcd irohhlinr/ pinto engine 220 AUTOMOTIVE INDUSTRIESTHE AUTOMOBILE February S, 1921 The five cylinders, which have a bore of 2% and a strokeof 3% in., are cast of aluminum with the cooling ribsintegral. Into the outer ends of these cylinders are fittedcylinder heads…
