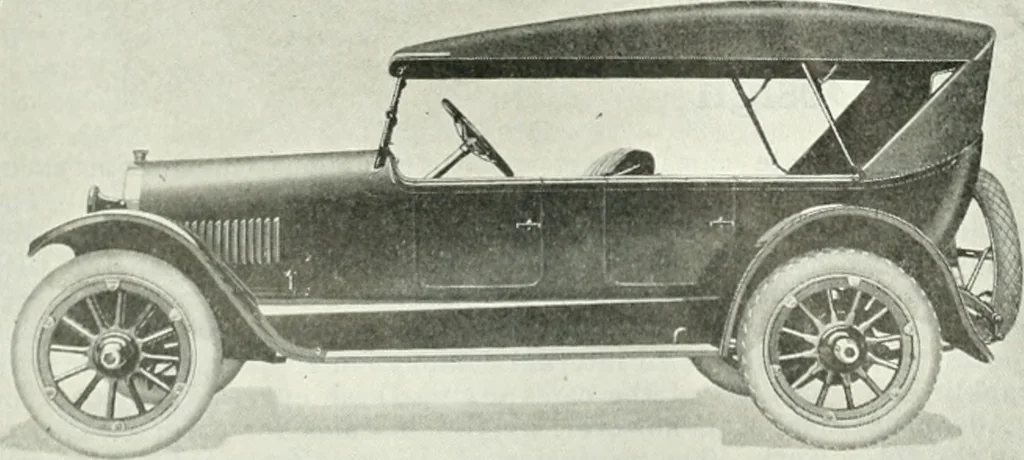

to allow of avalve inclination of 6 deg. 17% min. toward the cylinderaxis, the object being to reduce the wall surface of thecombustion chamber. Another noteworthy feature of thecylinder block is the integral intake manifold. Con-siderable study has been given to gas distribution, theintake being… … Sew Model 17 Oldsmobil through a manifold bolted on top of the cylinder block.The exhaust passages lie directly over and cross theintake passages, thus heating the intake. Cooling watercirculates all around the cylinder bores and also aroundthe intake and exhaust manifolds. Water from thepumps…
