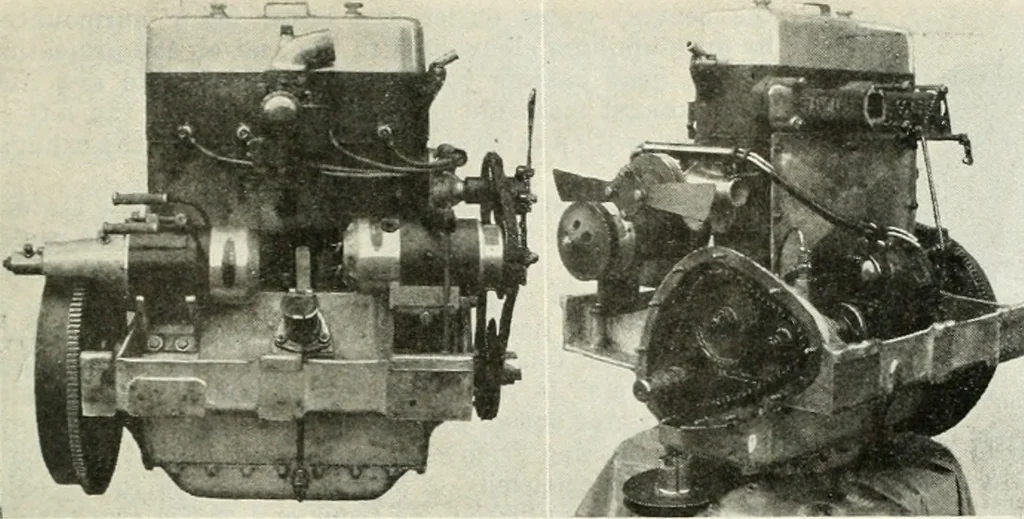

he union for a connecting pipe to theengine lubrication system. Oil is delivered into thestationary shaft at this end and is led through a counterbore to a deep groove running along the upper surfaceof the shaft. The lubricant then serves for the rockers,not only their pivot bearings, but also… … (To the Left) —Right side Standard light car engine. (To the Right)—Half front view Standard light car engine with chain cover removed. View shows supplementary water outlet at front end of cylinder head. All moving parts of the overhead valve gear are, there-fore, lubricated under pressure, the…
