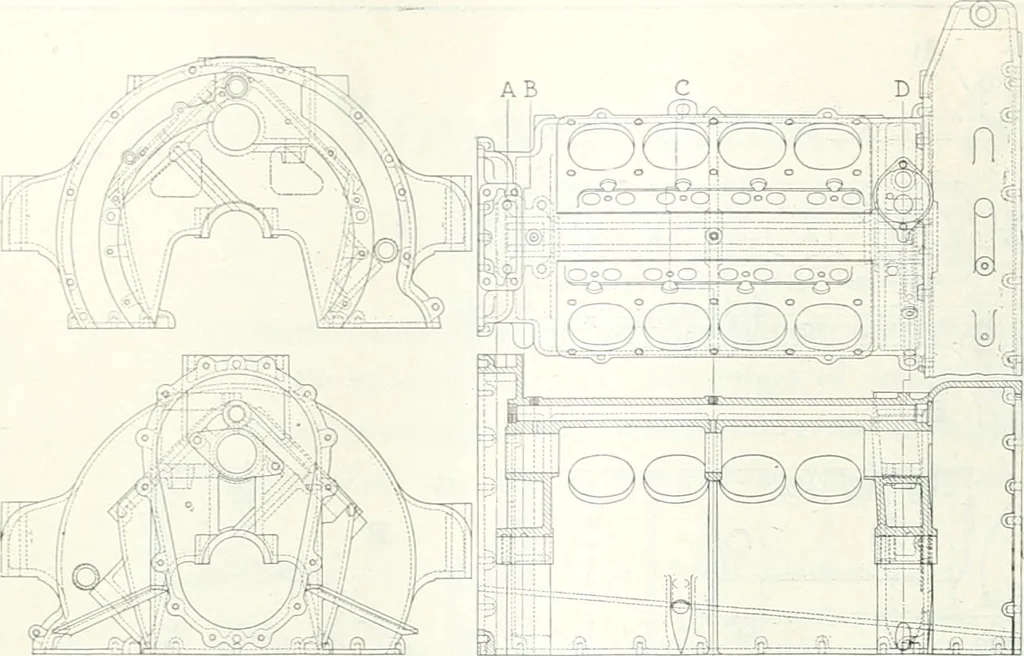

Fig. 1—Latest type of barrel crankcase used on light eight Oldsmobile 614 CRANKCASE DESIGN … AB C D Fig. 3—Oldsmohile hearings are carried in ribs which form a box section stresses imposed on these bearings. The camshaft isalso carried in box section ribs. The oil ways are alsoso arranged as to form additional backbone and entirelyeliminate the use of separate oil pipes which are…
