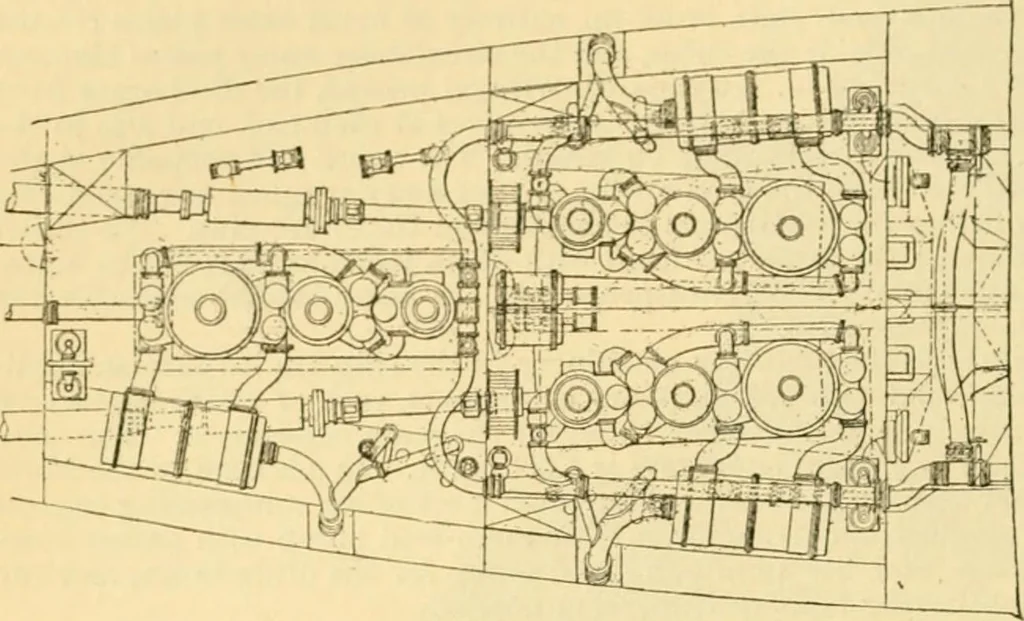

e fur the engines to stick on the dead-centers, so that prompthandling is always as-sured. The diagonal fram-ings liave been made ofwrought irun, stronglybolted to heavy Ijraeketscast on the cylinderswith round, solid flanges,and they are attached atthe other ends by T-hcads to the… … Fig. 4.—Three-screw United States cruiser engines—plan. the pistons and cross-heads with a good taper and shoulder, and secured by deej) nmlleableiron nuts. Tliecross-heails and connecting-rods are of forged iron, and the latter are coupledto the cross-heads by double jaws, and tothe crank-pins by…
