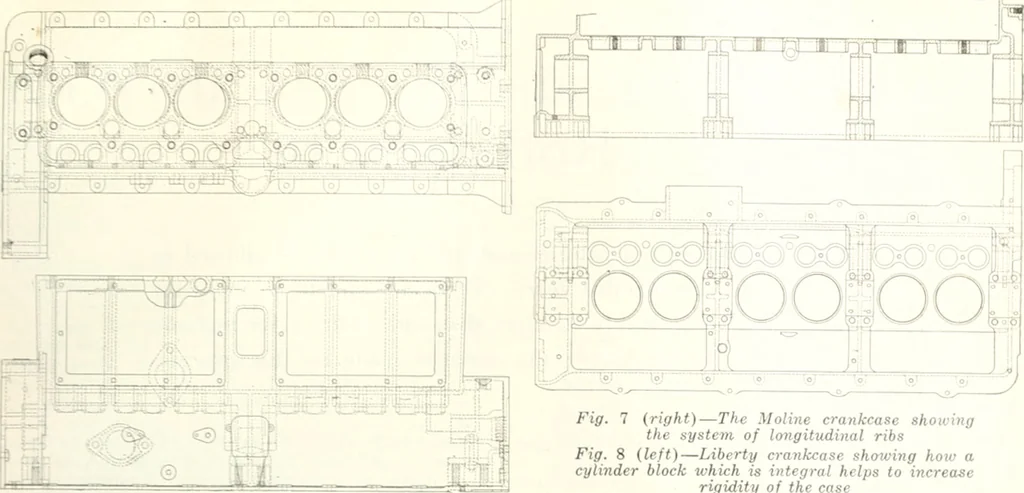

Automotive IndustriesSeptember ^8, 192i CRANKCASE DESIGN 617 … Fig. 7 (right)—The Moline crankcase showing the system of longitudinal ribs Fig. 8 (left)—Liberty crankcase showing hou> a cylinder block which is integral helps to increase rigidity of the case Liberty Motor Car Co. As shown in Fig. 8, this designtakes care of rigidity by the use of the…
