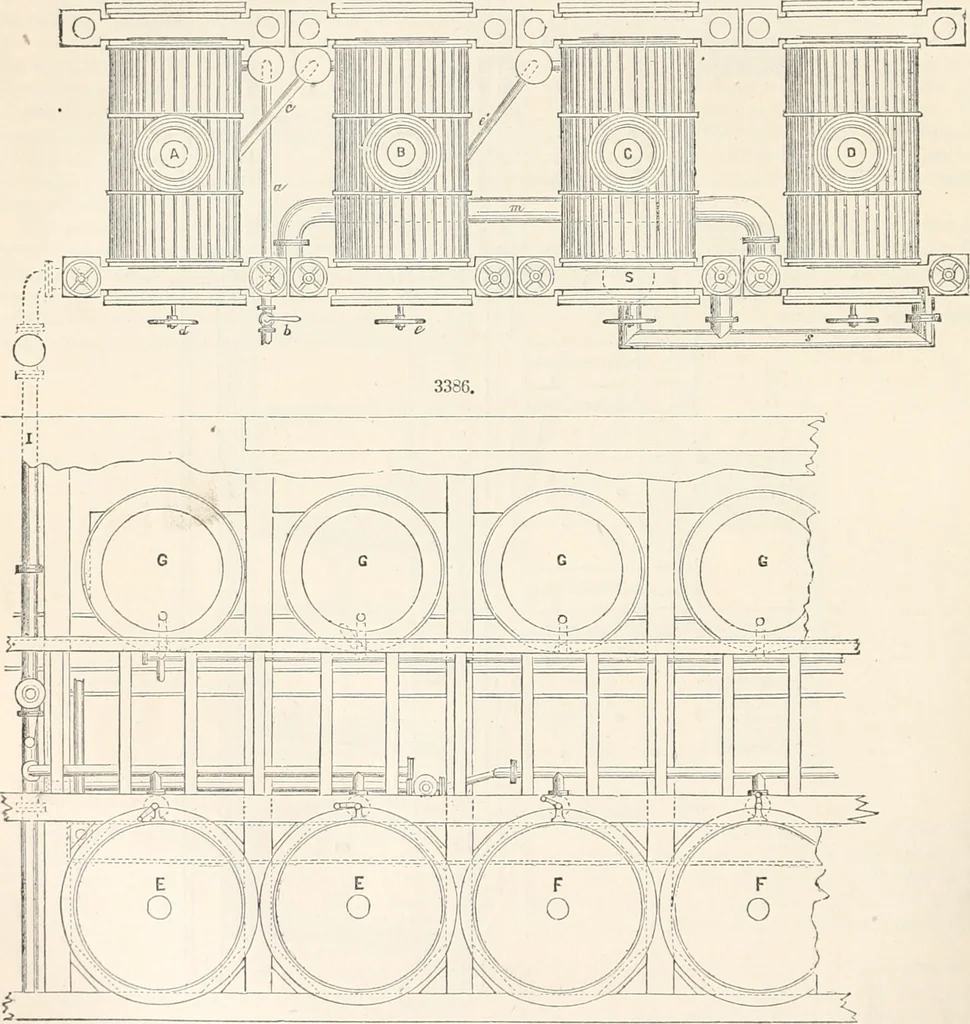

hecolumn q to feed the strike-pan D. The vapor arising from the second pan B passes through column n and steam-chest k, and up throughthe column o, to boil the pan C. The vapor from CD passes through the columns^ 2 through thehorizontal pipe s, and brings the vapor to the condenser s, where it is… … The waste water of the first pan A comes down through a pipe into an air-tight chest in the bot-tom-plate of the pumping engine, from which the force-pump u takes it and sends \\ back to the steam-boilers. The waste water of the second and third pans, which is the condensed water of the vapor…
