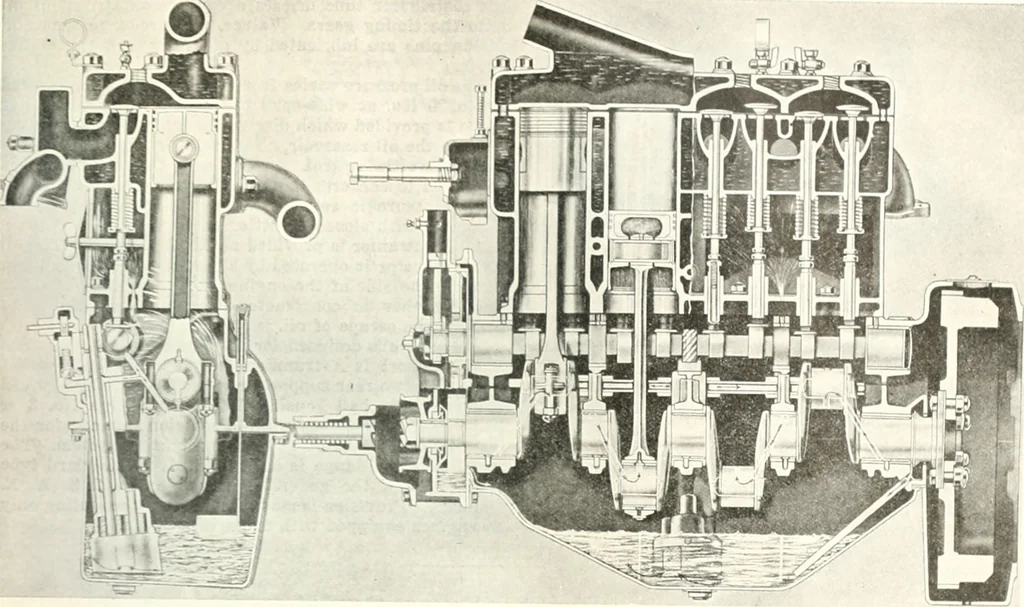

Bronze backed, babbitt-linedbearings, ground to size, are used in the big ends. Thecap is held in place by two 7/16-in. nickel steel, heat-treated bolts. The main bearings are also bronze backed,babbitt lined. No shims are used to fit the bearings.They are fly cut and line reamed to a clearance of… … ing ens/hie slioivhig pr,s.<„rr l„h,iration si/stem, ivater jacketing, and nmni-fold coiistruction is 11 32 in. and the effective working diameter is 1% in.The tappets are of low carbon steel, case hardened,ground and fitted with hardened steel adjusting screwsand lock nuts. The camshaft is a…
