Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 238

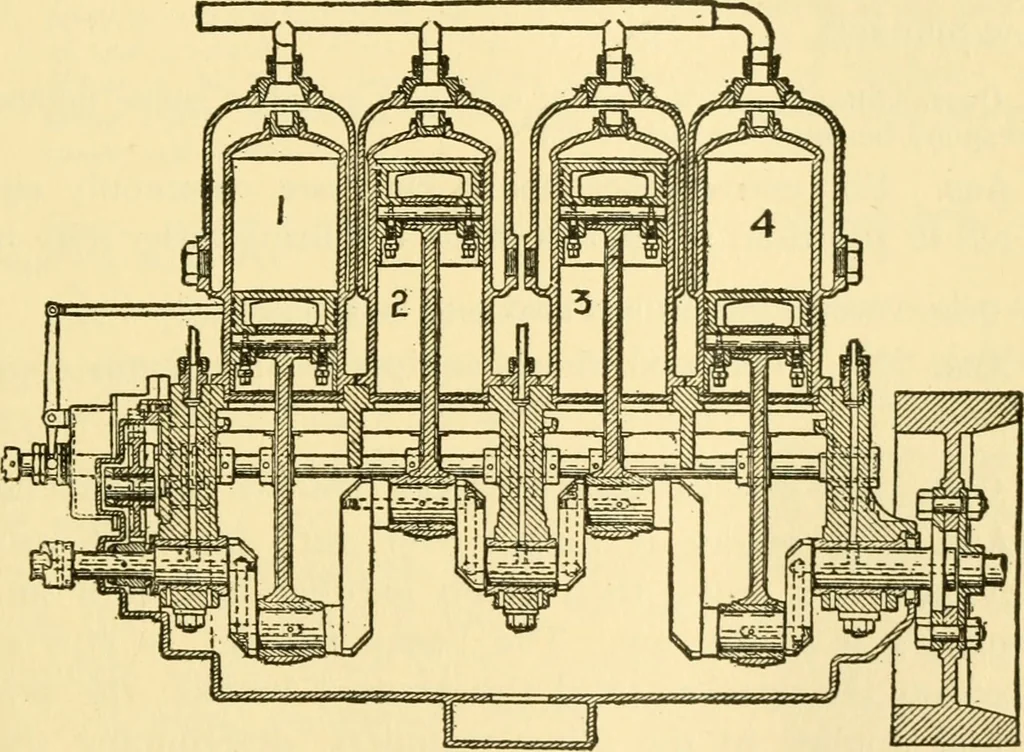

. The adjustment of the ignition mechanism must follow the same rotation as governed by the can. rotation. TIMING 211 Ques. Explain the best method of ascertaining the timing, asregards the firing of the successive cyUnders. Ans. The engine should be turned over slowly by hand.By watching the… … Fig. 121.—A typical four cylinder engine, showing position of cranks andworking parts, including secondary shafts. Ques. How is the timer adjusted? Ans. The engine should be turned slowly until theinlet valve of cylinder #i seats. It is then given anadditional half turn; if the timer be fastened to…
Automobiles
