Aviation engines; design--construction--operation and repair; (1919)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley publishing co. · leaf 117

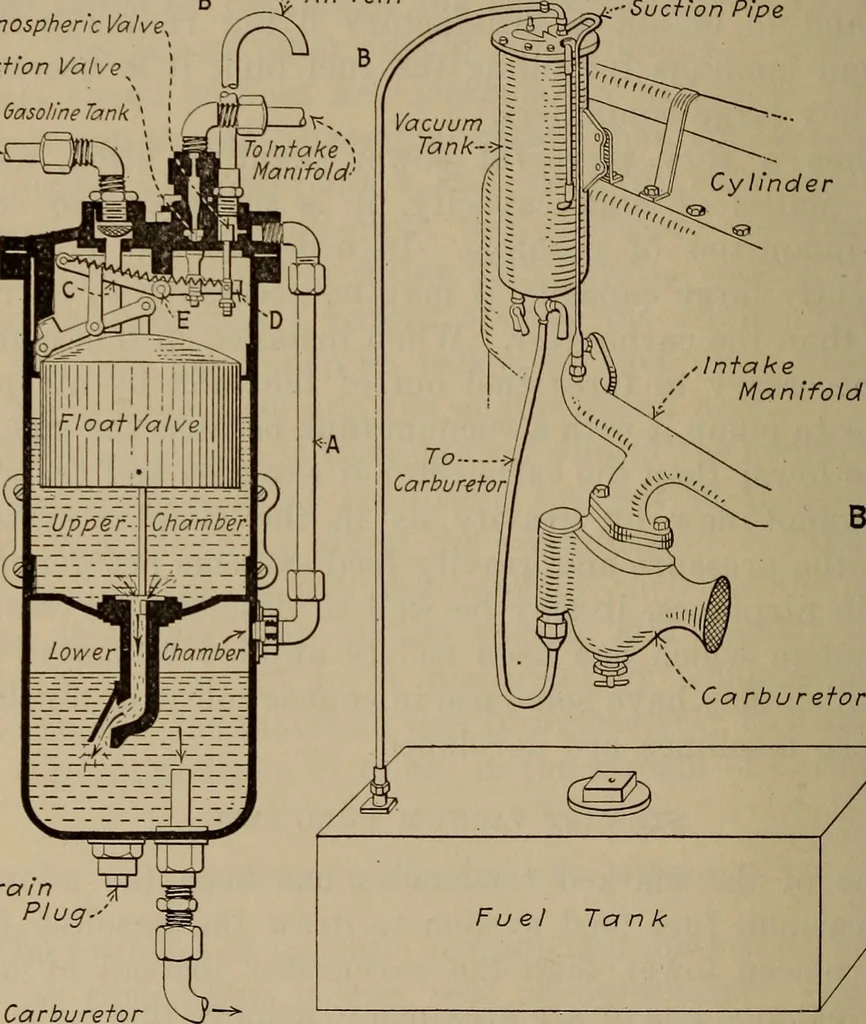

e advantages of thepressure system are obtained with very little more com-plication than is found on the ordinary gravity feed. Themechanism is all contained in the cylindrical tank shown, 118 Aviation Engines which may be mounted either on the front of the dash oron the side of the engine as… … Ca rburetor Plug- To Carburetor Fu el Ja n k Fig. 42.—The Stewart Vacuum Fuel Feed Tank. chamber. The former, which is at the top of the device,contains the float valve, as well as the pipes running tothe main fuel container and to the intake manifold. Thelower chamber is used to supply the…
Airplanes
