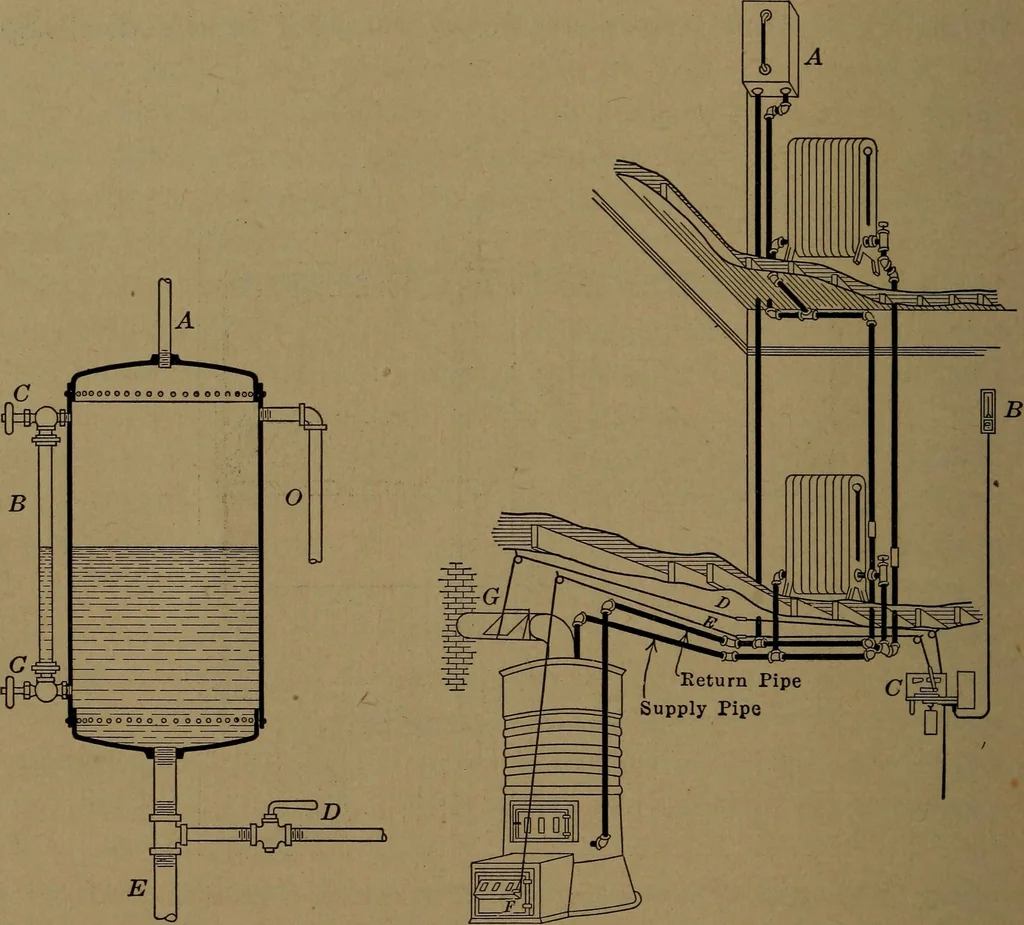

ank with the circulating system and D connects withthe cold-water supply as a convenience for filling the system 46 MECHANICS OF THE HOUSEHOLD with water. The object in placing the stop-cock D near theexpansion tank is to avoid overflowing the system in fiUing.The overflow pipe, as stated above, is… … Fig. 36.—The expansion Fig. 37.—When the expansion tank of a hot- tank, water heating system must be so located that it is apt to freeze, it must be piped as a radiator. The expansion tank must be so located that there will be nodanger of freezing. Should it be necessary to place the tank in…
