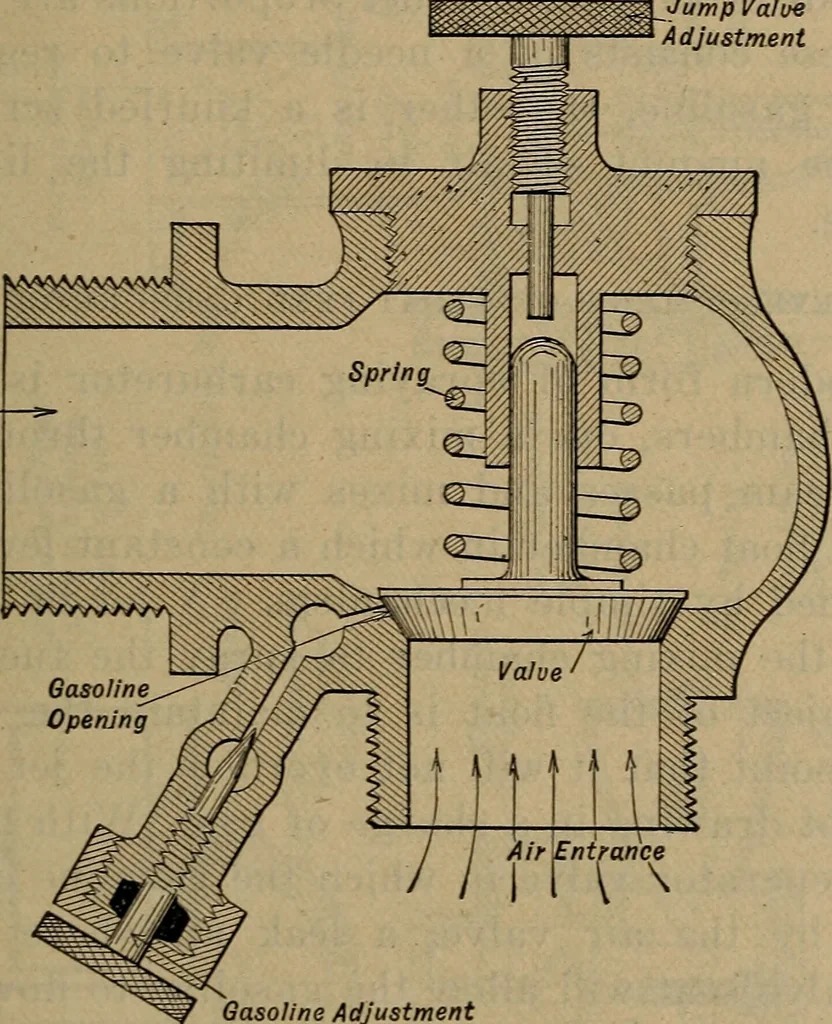

educed to a spray by the suction effect of the enteringair stream drawing it through a fine opening. The advantage of this construction is that a more Early Vaporizer Forma 121 thorough amalgamation of the gasoline and air particlesis obtained. With the earlier types previously consideredthe air… … Entrance Gasoline Adjustment Fig. 43.—Marine-Type Mixing Valve, by -which Gasoline is Sprayed into AirStream Through Small Opening in Air-Valve Seat. be drained off and fresh fuel provided before the propermixture would be produced. It will be evident that whenthe fuel is sprayed into the air…
