Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 122

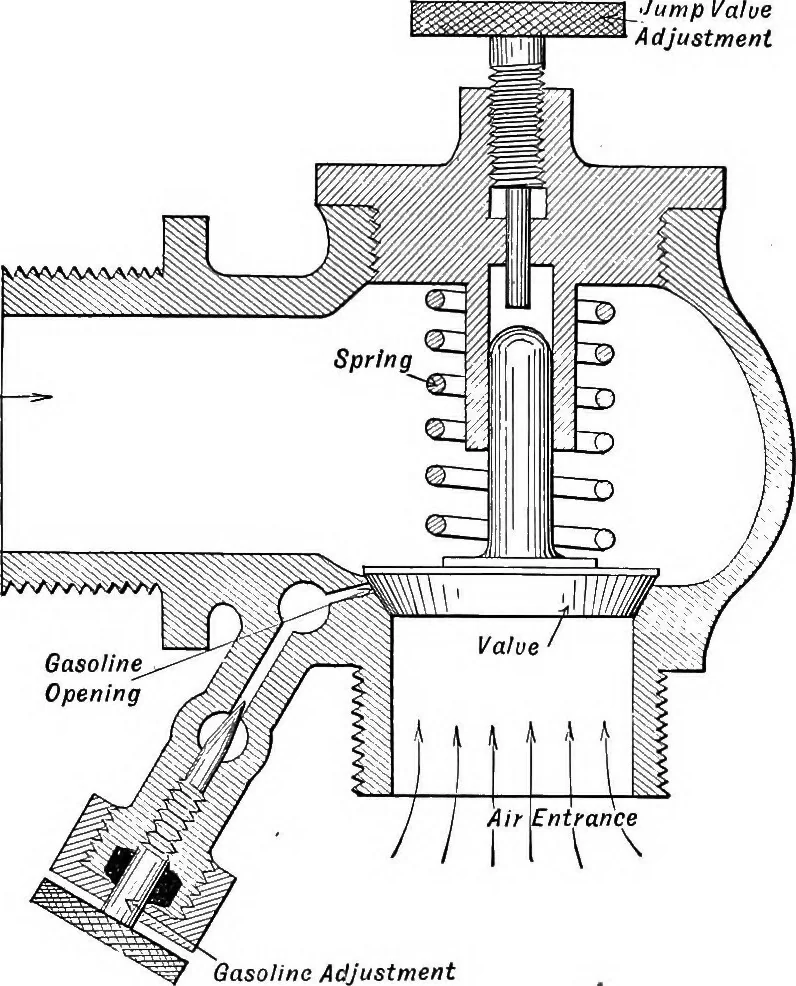

uretors. The fuelis reduced to a spray by the suction effect of the enteringair stream drawing it through a fine opening. The advantage of this construction is that a more Early Vaporizer Forms 121 thorough amalgamation of the gasoline and air particlesis obtained. With the earlier types previously… … Gasoline Adjustment Fig. 43.—Marine-Type Mixing Valve, by which Gasoline is Sprayed into AirStream Through Small Opening in Air-Valve Seat. be drained off and fresh fuel provided before the propermixture would be produced. It will be evident that whenthe fuel is sprayed into the air stream, all the…
Airplanes
