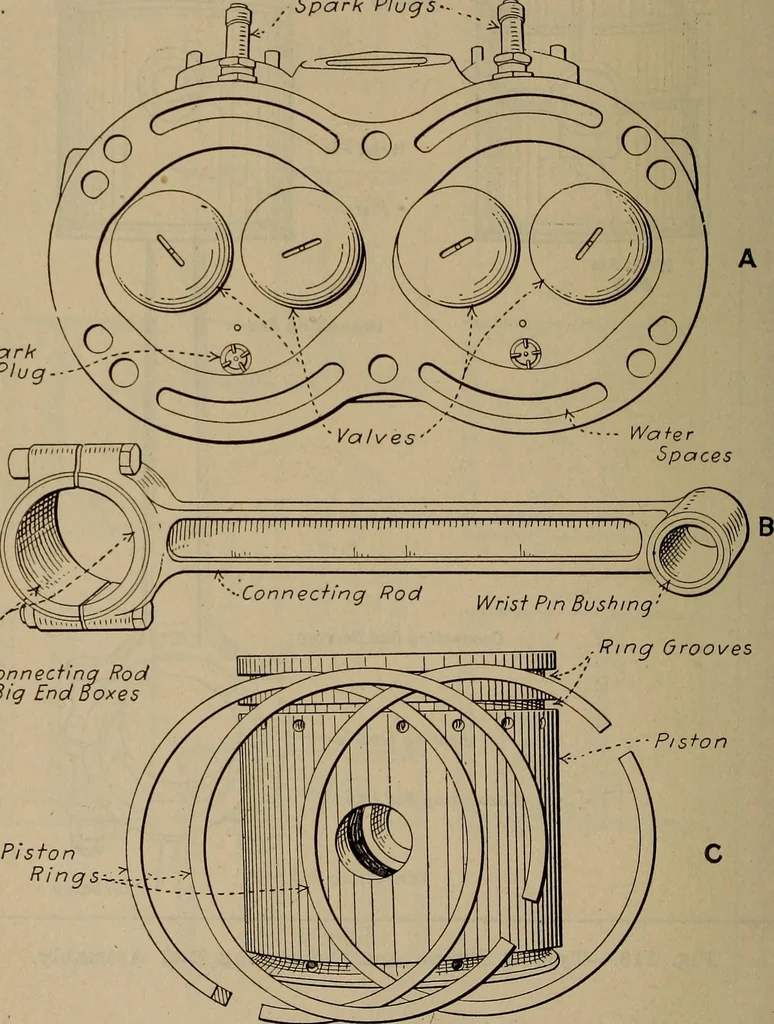

y consider itas two pistons in one. One of the important conditions in piston design isthe method of securing the wrist pin which is used to 292 Aviation Engines connect the piston to the upper end of the connectingrod. Various methods have been devised to keep thepin in place, the most common of… … Connecting RodBig End Boxes Pis -to n Rings~.?\ Fig. 119.—Parts of Sturtevant Aviation Engine. A—Cylinder HeadShowing Valves. B—Connecting Rod. C—Piston and Rings. Constructional Details of Pistons 293 wrist pin was free to move it would work out of thebosses enough so that the end would bear…
