Model making; including workshop practice, design and construction of models, a practical treatise for the amateur and professional mechanic .. (1919)
Yates, Raymond F. (Raymond Francis), 1895- ed · New York, The Norman W. Henley Pub. Co. · leaf 260

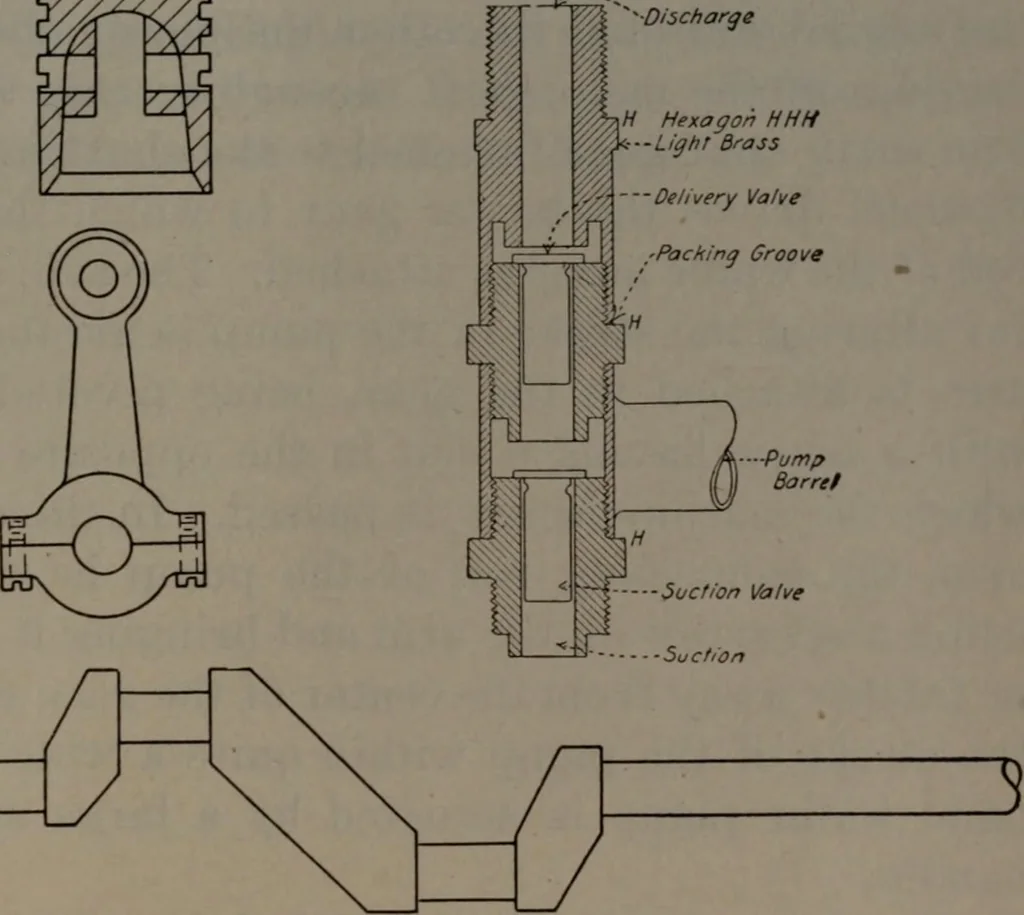

king Model Hydroplane 257 a passage to the cylinders by means of the two recessesiiled in the top of the cylinders, as explained in a previ-ous paragraph. These slots come directly over the re-cesses, as shown in the cross section drawing of the en-gine. Fig. 171. Between the pistons, and directly… … Fig. 173—The crankshaft, connecting rods, pistons and water pump of the engine exhaust steam therefore comes out at both sides. Be-tween the cylinders and on each side of the engine cast-ing, two 14-inch holes are drilled from beneath up throughthe casting until they meet the horizontal hole that…
