Aviation engines; design--construction--operation and repair; (1919)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley publishing co. · leaf 313

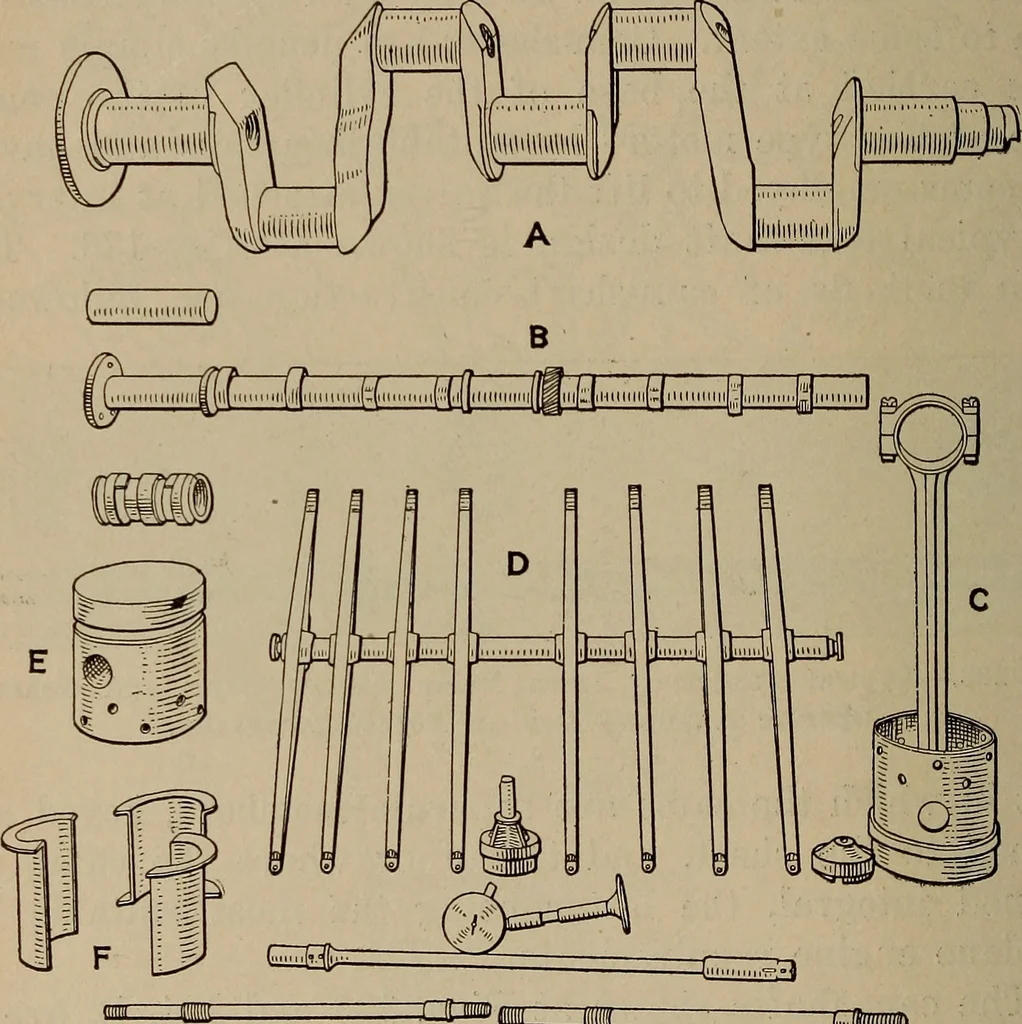

cams are keyed in place in that it is stronger,and as the cams are a part of the shaft they can neverbecome loose, as might be possible where they are sepa-rately formed and assembled on a simple shaft. The importance of the crank-shaft has been previously 314 Aviation Engines considered, and some… … ££■>« ML ^pu® Fig. 134.—Important Parts of Duesenberg Aviation Engine. A—ThreeMain Bearing Crank-Shaft. B—Cam-Shaft with Integral Cams. C—Piston and Connecting Rod Assembly. D—Valve Rocker Group.E—Piston. F—Main Bearing Brasses. struction and design, because practically the entire dutyof…
