Steam turbine engines : their construction, care and operation (1910)
Swingle, Calvin F. (Calvin Franklin), b. 1846 · Chicago : Frederick J. Drake · leaf 33

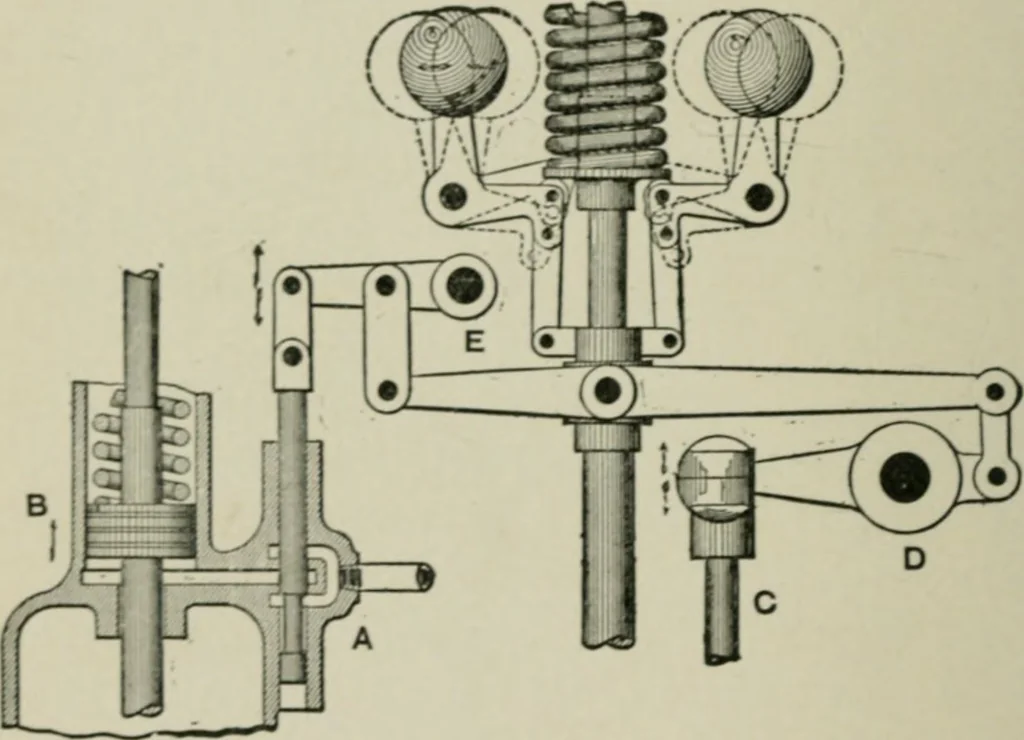

o vary the planeof oscillation of this valve, thus causing it to admit more 28 Steam EiKjinccring or lo?? steam to piston B. The admission valve, beingactuated exclusively bv piston B, is thus caused to remainipen for a longer or shorter period of time, according tothe load upon tlie turbine. The… … Fig. 249 The governor sleeve is used as a floating fulcrum, andthe points D and E are fixed. By means of this veryingenious device the steam is admitted to the turbine inpufTs, either long or short, according to the demand forsteam. At full load the puffs merge into an almost con-tinuous blast.…
Steam-engines -- Design and construction · Steam-turbines -- Handbooks, manuals, etc
