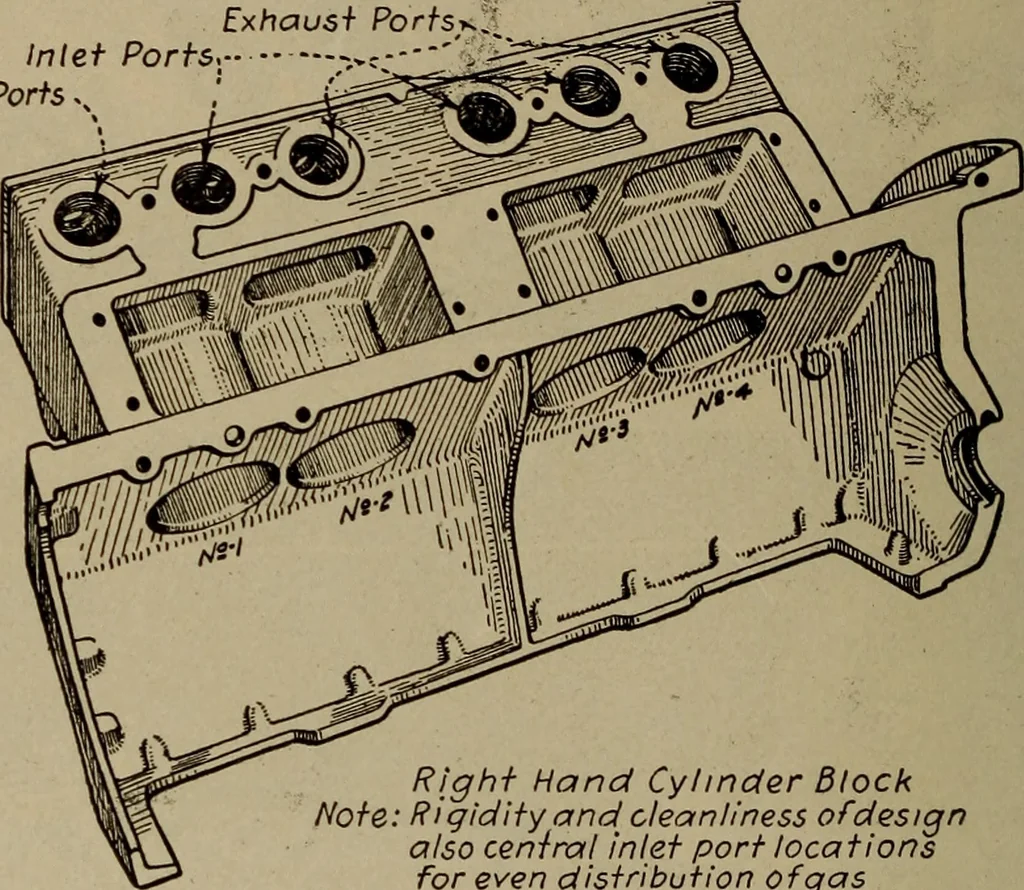

lized and the cylinders are cast in pairs, theengine base is longer than it would be to support a blockcasting, but is shorter than one designed to sustain in- 322 Aviation Engines dividual cylinder castings and a five-bearing crank-shaft.It is now common construction to cast an oil… … Right Hand Cylinder BlockNote: Rigidity and cleanliness of designalso ceniral inlet port locationsfor even distribution of gas Exhaust Ports ,..., Inlet PortsExhaust Ports --\
