Aviation engines; design--construction--operation and repair; (1919)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley publishing co. · leaf 469

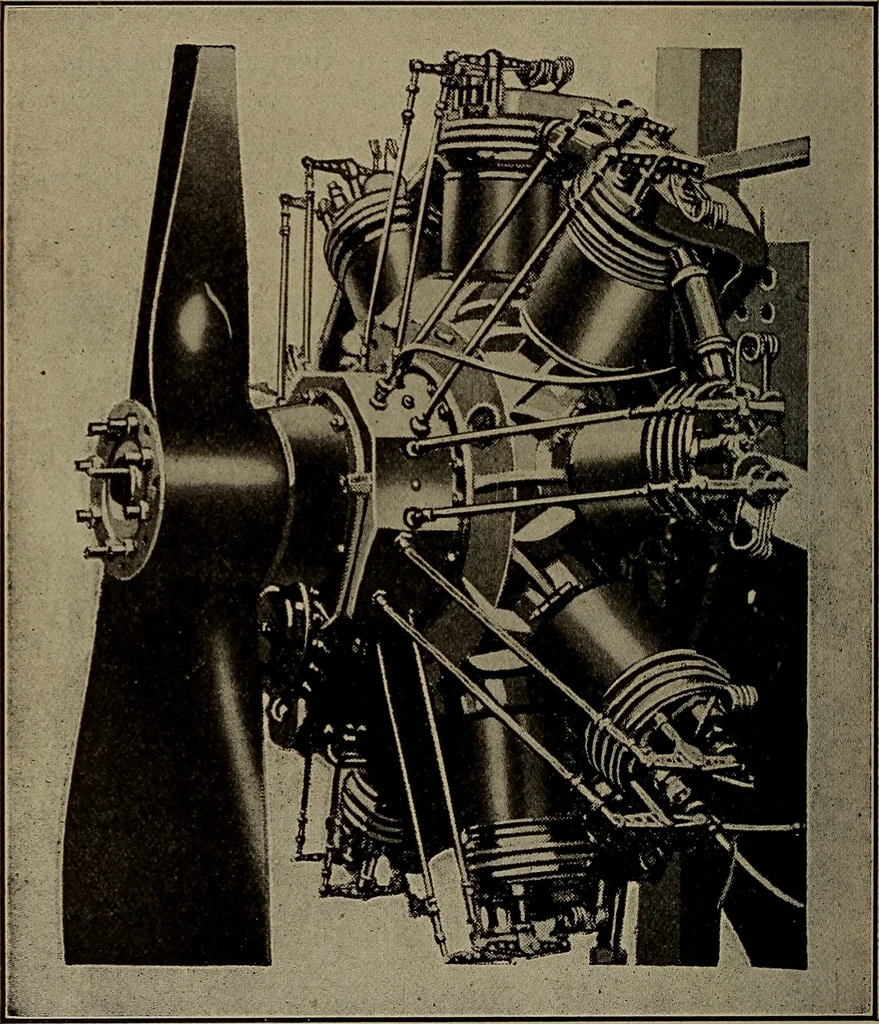

of the carrier as if nomeans were provided the resulting motion of the pistonswould be irregular. The method by which the piston strokes are made tooccur at precise intervals involves a somewhat lengthyand detailed technical explanation. It is sufficient to say 470 Aviation Engines that an… … Fig. 198.—The Canton and Unne Nine-Cylinder Water-Cooled Radial Engine. size as the fixed gearattached to the crank-case and whichis formed integrally with the connecting rod carrier. Theaction of the gearing is such that the cage carrying thebig end retaining pins does not rotate independently of…
Airplanes
