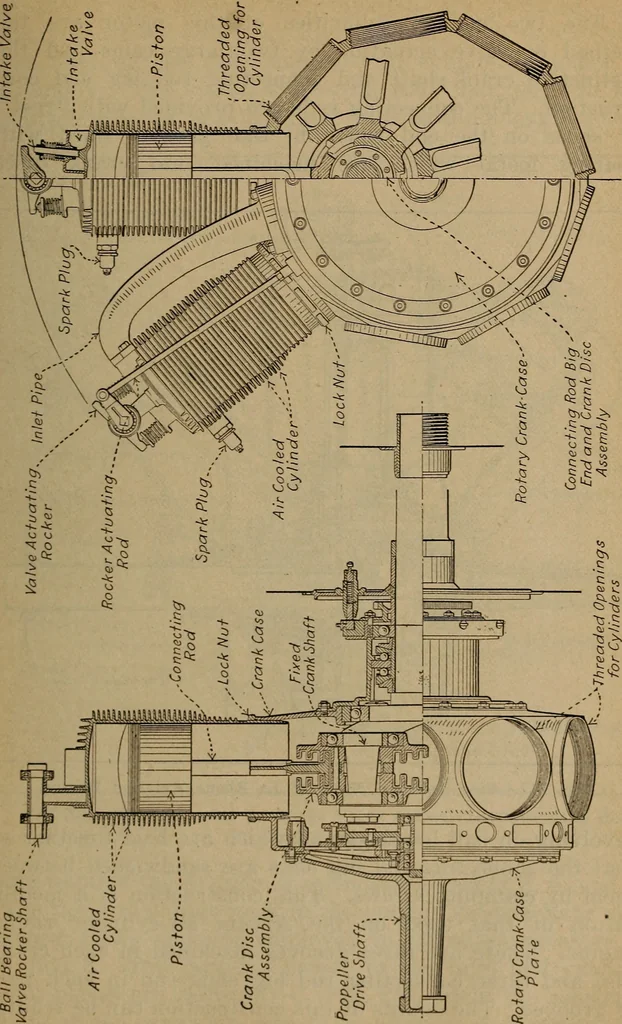

Fig. 215.—Nine-Cylinder Revolving Le Rhone Type Aviation Engine. against the threaded boss on the crank-case. The ex-ternal appearance of the Le Ehone type motor is clearlyshown at Fig. 215, while the general features of con-struction are clearly outlined in the sectional views givenat Figs. 216… … 497 498 Aviation Engines The two main peculiarities of this motor are themethod of valve actuation by two large cams and thedistinctive crank-shaft and connecting rod big end con-struction. The connecting rods are provided with feetor shoes on the end which fit into grooves lined withbearing metal…
