Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908) Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 588

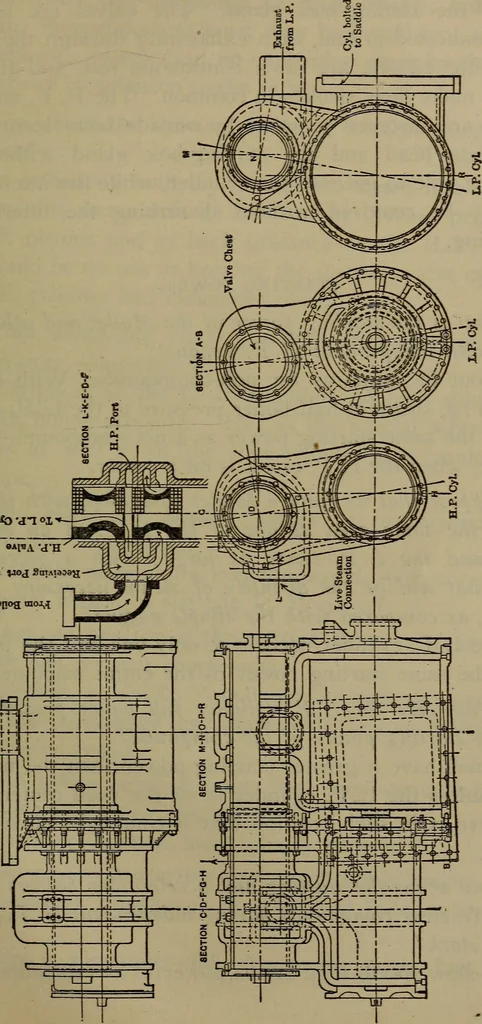

P. cylinders, but the H. P. are in front of and in line withthe L. P. instead of alongside. Each cylinder on each sidehas its own valve chest and is cast separately from thesaddle. A pipe from the saddle admits steam to the H. P.chest; the L. P. exhaust is through a stuffing box to the sad-dle, so… … *!*£> <n ©I H3g o 6oU beS 574 LOCOMOTIVE CATECHISM. fastening the stuffing-box gland. The valves are balancedpistons connected in line, each exhausting through the center.The driving pistons are on a continuous rod, and those oneach side make their strokes in common. The H. P. and L.… Locomotives
